Technology offers three sales kits to demonstrate the thermal insulation performance and UV blocking performance of glass and window films, two solar film temperature meters 86300 and 86301 to demonstrate thermal insulation performance through temperature test, two power meter: infrared power meter and UV power meter.

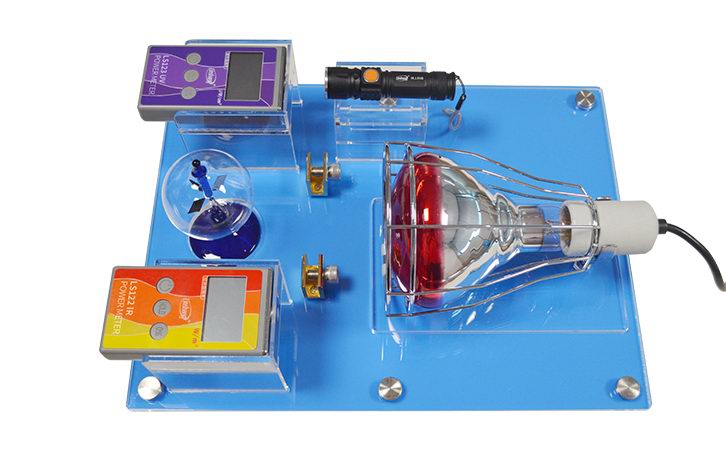

863150 Solar Film Sales Kit
Demonstrate heat insulation effect, UV protection and reflective heat insulation of light-transmitting materials
Experience the heat insulation and UV protection effects of different products
Equipped with plexiglass booth and special aluminum box, easy to install and carry
Infrared lamp intensity can be adjusted

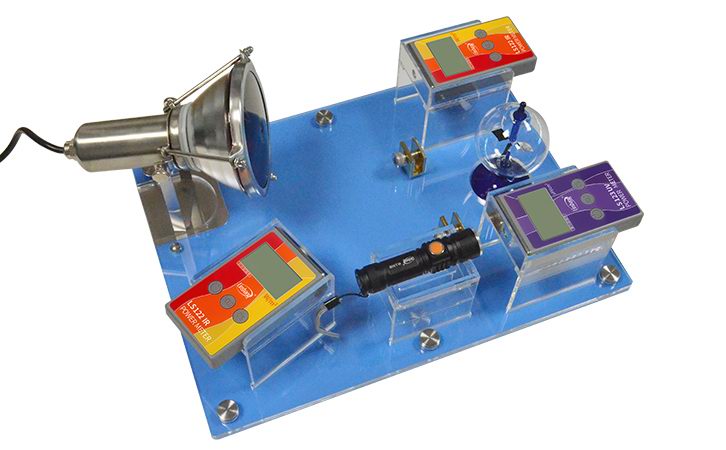

861150 Solar Film Sales Kit
1.Used for Evaluating heat-insulating and UV-insulating property of tint of windows, solar films, glass and other transparent materials
2.Demo UV rejection, IR rejection at the same showcase
3.Includes:Plexiglass Showcase,150W infrared lamp,UV Flashlight,Glass radiometer,86123 UV Power Meter,86122 power meter
86300 Solar Film Temperature Meter
1.Used to demonstrate the insulation performance and UV isolation performance of insulation film.
2.Use 150W Philips infrared lamp
3.Directly with both hands to feel the change in temperature.
4.Shows the real time temperature value and the temperature difference
86301 Solar Film Meter
1. Two 150w Philips infrared lamps.
2. "Temperature" LED to display the current temperature value.
3. "Heat rejection" LED to display the heat rejection rate of the measured material.
4. Directly measure the heat rejection rate of the material.
86122 IR Power Meter
1.Used for measuring the infrared radiation intensity
2.The instrument is also used for the infrared rejection measurement.
3.Weight: around 140 g (including battery)
4.Spectral range: λ (1000-1700 nm); λp = 1400 nm

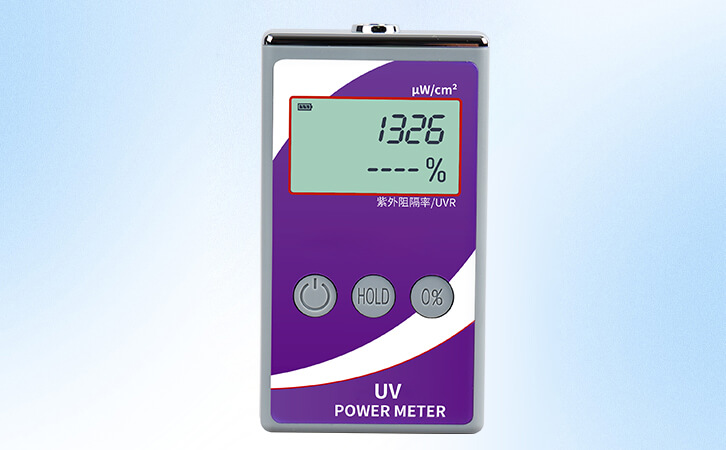

86123 UV Power Meter
1. Irradiance measuring range: 0 -40000 uW /c m2
2. Accuracy: ± 10%
3. Weight: around 140 grams (includingbattery)
4. Spectral range: λ (260-380nm); λp = 365 nm
