86122 IR Power Meter

Special for window tint and glass demonstation

Used for measuring the infrared radiation intensity
Used for the infrared rejection measurement
Spectral range: 1000-1700nm (λp=1400nm)

User Manual

86122 infrared power meter is the same model of V-Kool energy tester, also called infrared energy receiver. This is an instrument with a wide receiving range. It is mainly used to measure the infrared blocking rate of materials. It is suitable for the display of thermal insulation effects of thermal insulation glass, solar film and other materials. It can also be used to measure the radiant energy power density of various light sources, that is, the radiant energy power per square meter with unit W/m².

Parameters

Parameter 86122 IR Power Meter
Power Range 0-40000 W / m²
Measurement Accuracy ± 10%
Infrared Rejection Rate -999%-100%

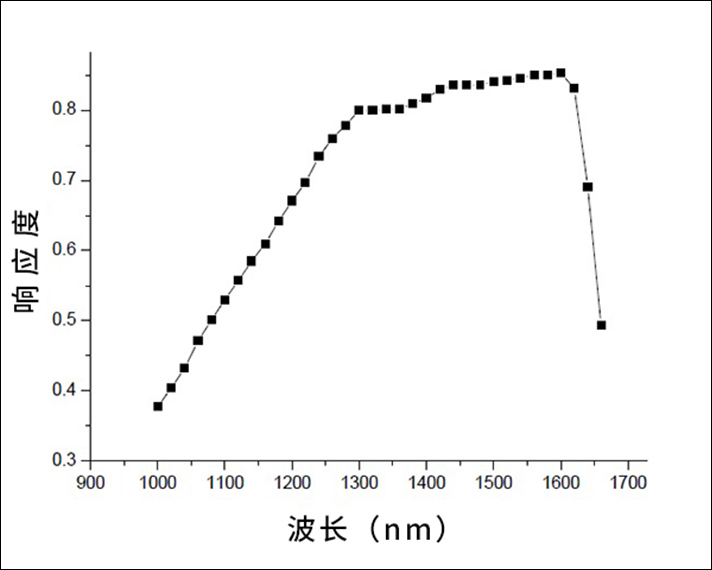

Spectral Response 1000nm-1700nm
Photosensitive Aperture 10mm
Dimension 125mm * 69mm * 24.5mm (L*W*H)
Weight About 140 g (including battery)
Working Temperature -20 ° C-+ 70 ° C
Power Supply AAA alkaline dry batteries

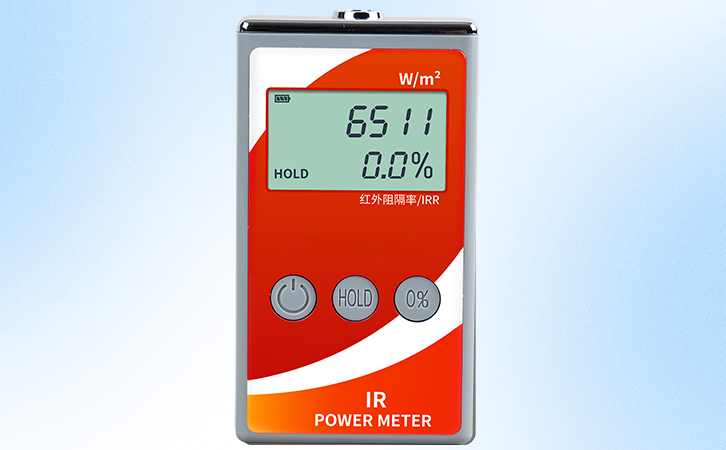

86122 solar power meter appearance
86122 solar power meter appearance

Features

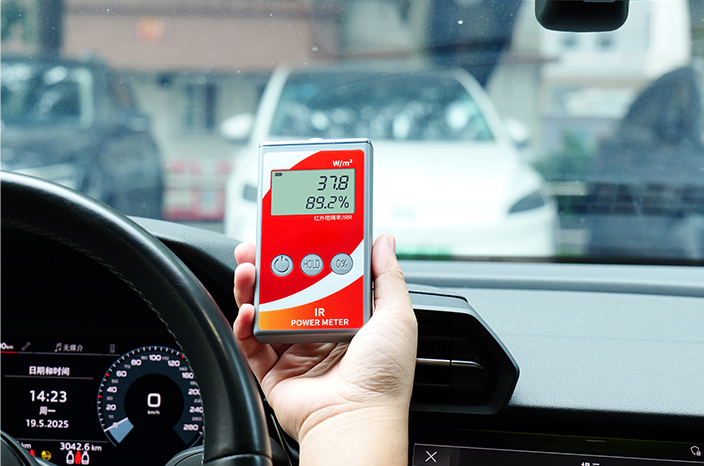

Applicable for a wide range of materials

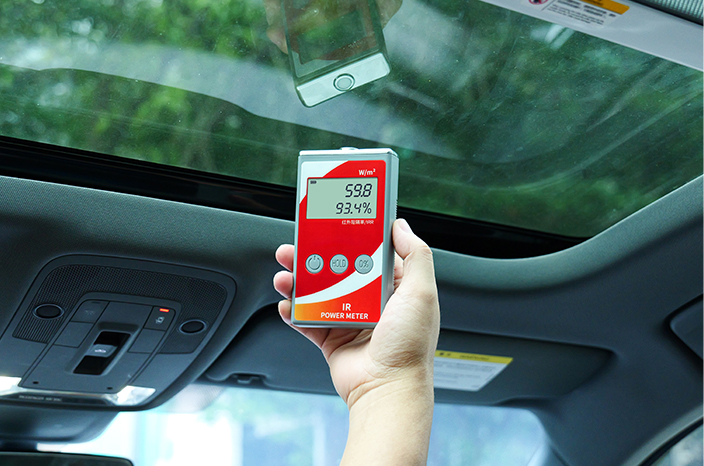

The 86122 solar power meter is suitable for testing the infrared rejection performance of architectural film, automobile thermal insulation film, solar film, thermal insulation glass and solar equipment

Simple operation, infrared intensity can be measured upon startup

The device is easy to operate, no complex calibration required, measures infrared irradiance upon startup

The demonstration effect is intuitive and easy to understand

Directly displays the blocking rate, no manual calculation needed; the higher the rate, the better the blocking effect

Data can be locked

Short press the “HLOD” key to lock data for easier reading

Compact and portable, can be held with one hand

Small in size, one-hand operable, easy to carry, convenient for demonstrations anytime and anywhere

Wide spectral response

Capable of measuring infrared intensity in the 1000nm to 1700nm wavelength range

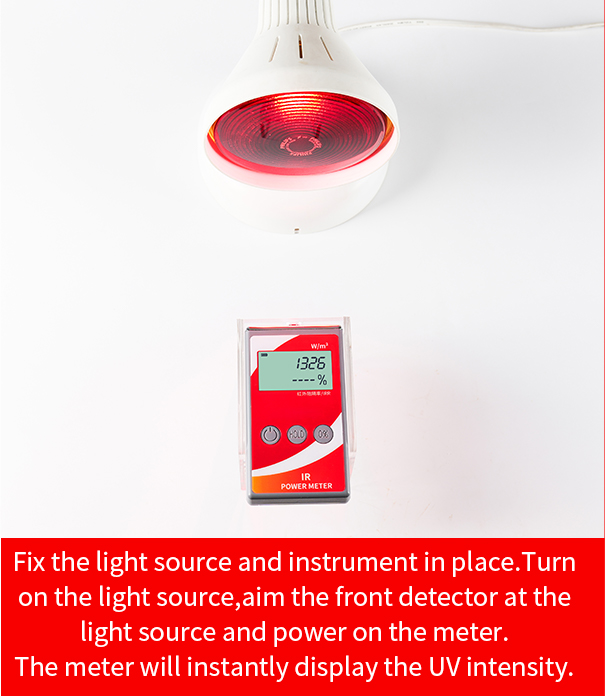

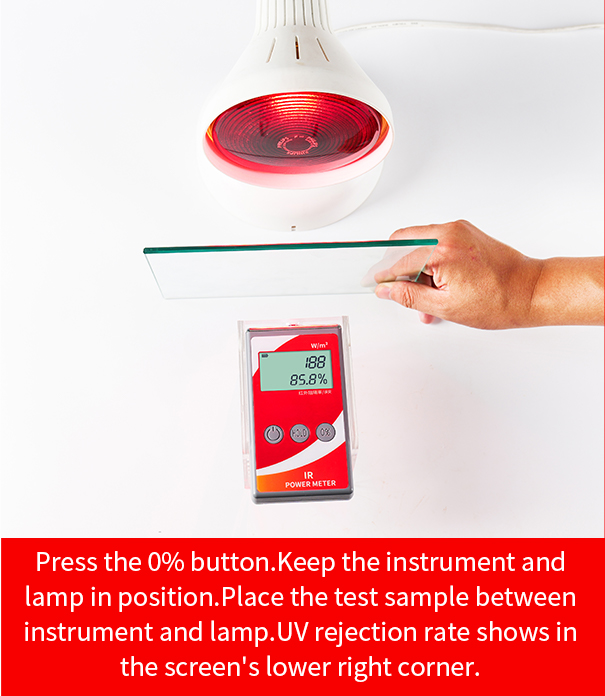

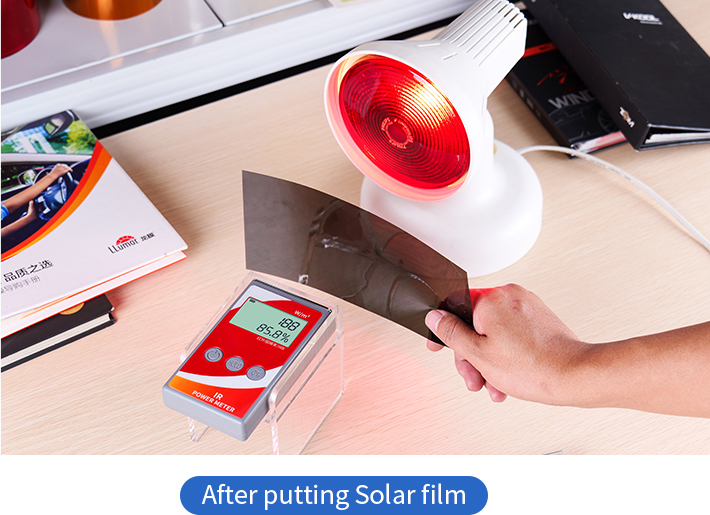

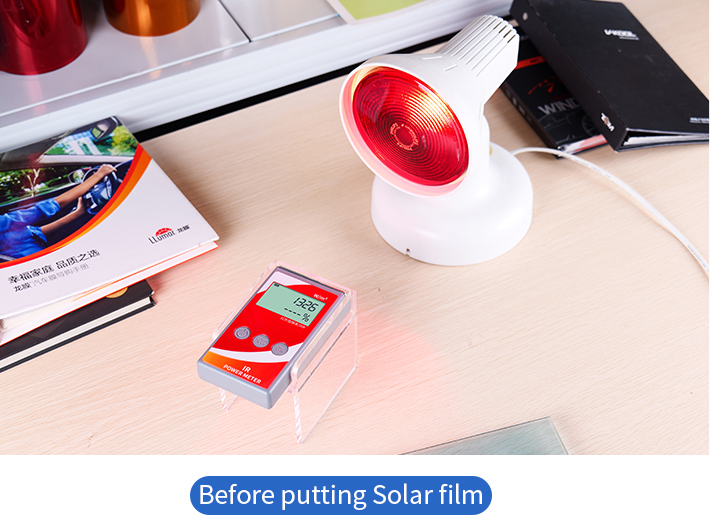

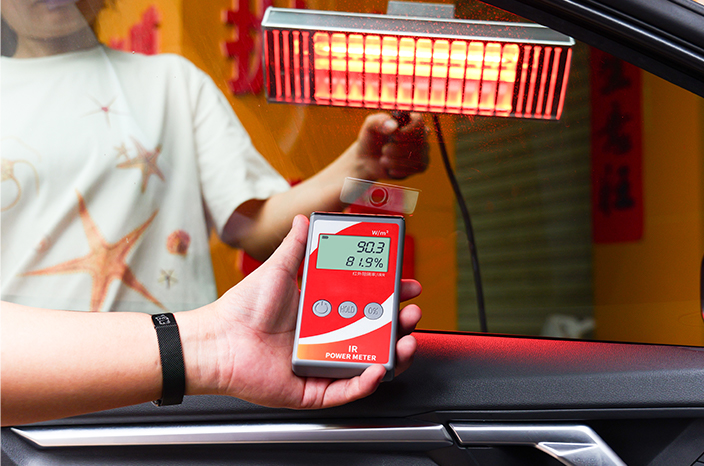

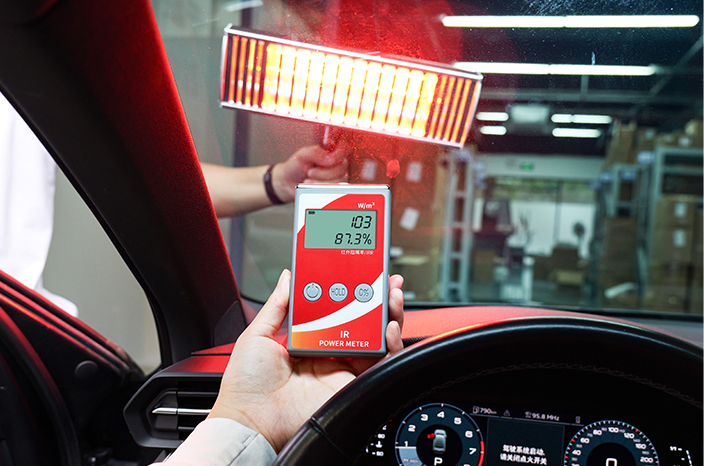

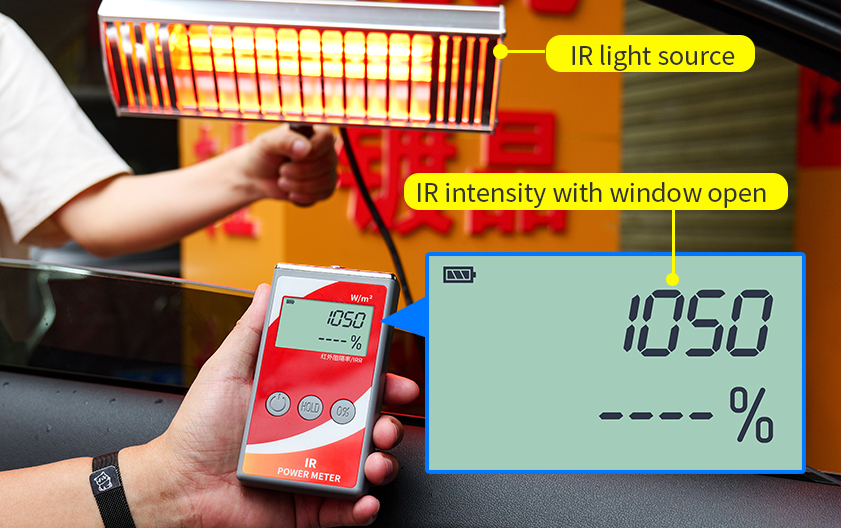

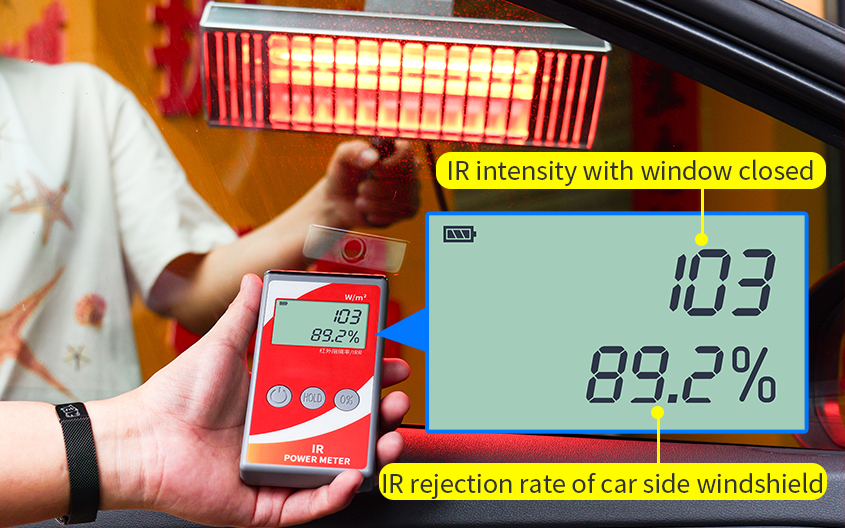

Infrared power meter measurement steps

Packaging Details

No. Description Quantity Unit
1 86122 Infrared Power Meter 1 pcs
2 User Manual 1 pcs
3 Certificate / Warranty Card 1 pcs

FAQ

  1. 1. The difference between 86122 infared power meter and window film transmission meters

    86122 infrared power meter can test the power (irradiation intensity) of infrared rays, as well as the infrared rejection rate of solar film, glass and other materials.

    The infrared response band of 86122 is 1000-1700nm and the peak value is 1400nm. The infrared rejection rate calculated by the 86122 infrared power meter is the infrared rejection rate in this response wavelength range; while the window film transmission meter (1400nm) tests the infrared rejection rate at 1400nm, so the test data of the two instruments are different. The size is related to the sensitivity of the solar film's transmittance to wavelength changes.
