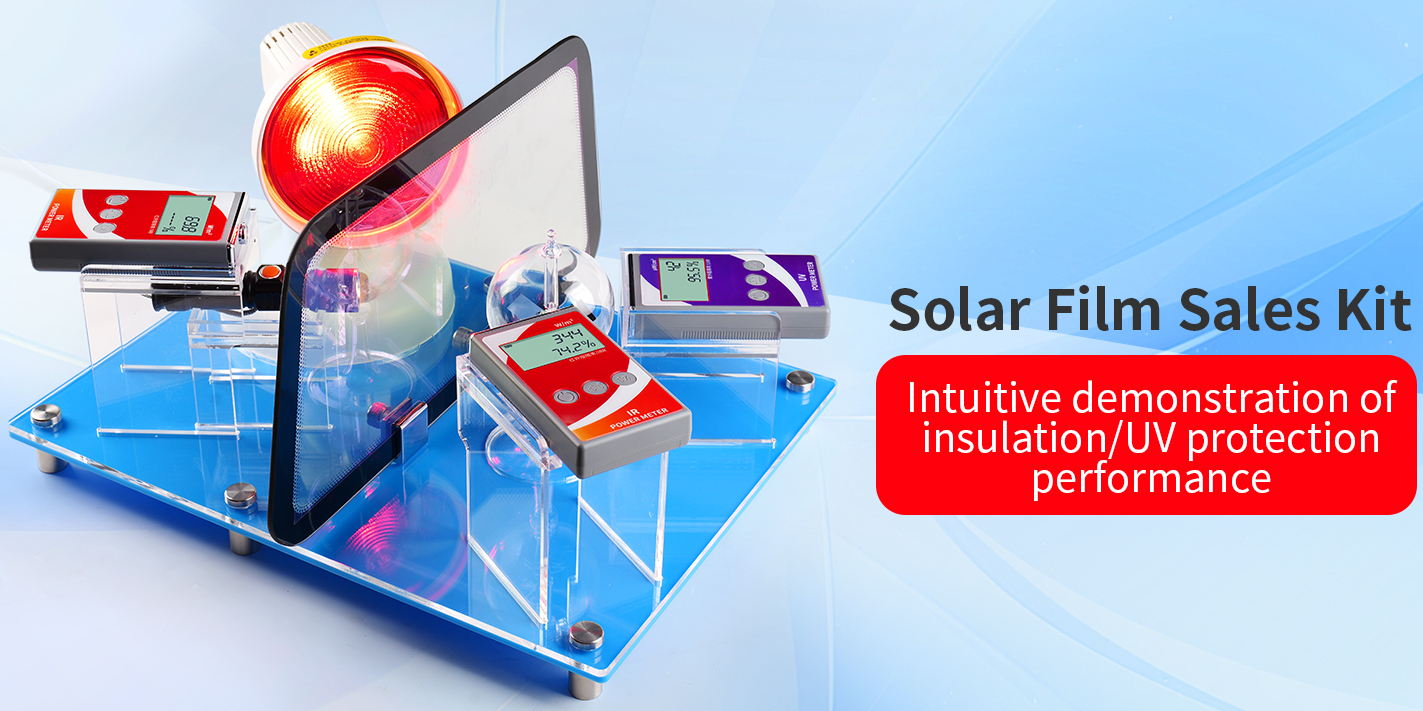

863150 Sales Kit
Anti-IR/UV Demo Kit, used to assist sales
Demonstrate heat insulation effect, UV protection and reflective heat insulation of light-transmitting materials
The infrared lamp intensity can be adjusted

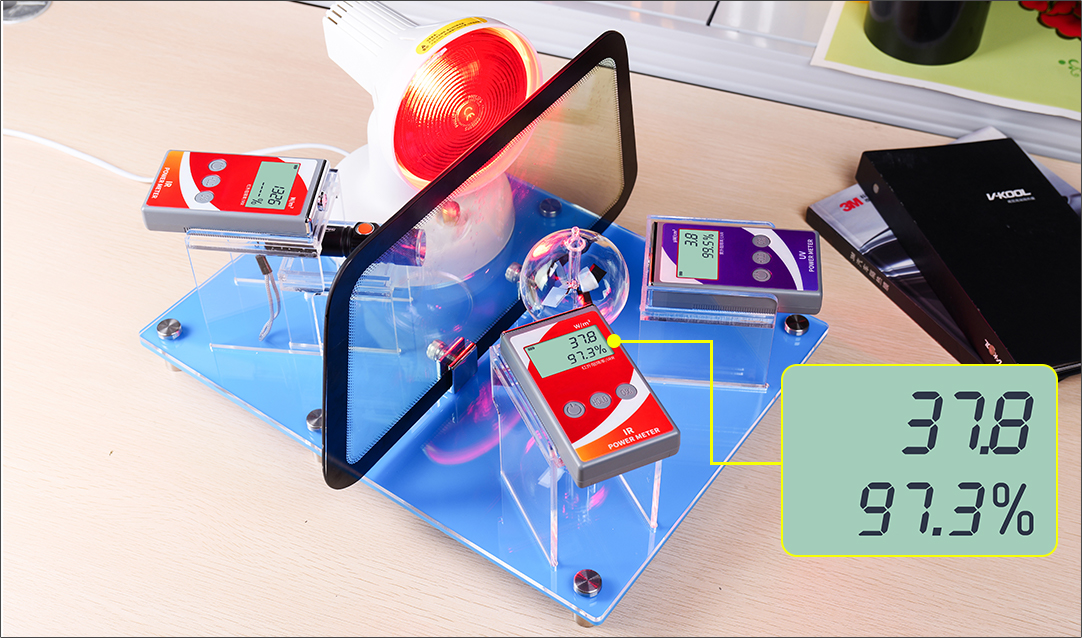

The 863150 solar film sales kit is designed to demonstrate the heat insulation, UV protection and reflective heat insulation effects of light-transmitting materials such as window film and heat insulation glass. It can directly show the blocking effect through the percentage data and the spinning speed of blades in the glass radiometer. The effect is intuitive and easy to understand.
The window film sales kit is equipped with ultraviolet flashlights and authentic Philips infrared lamps with adjustable light intensity, thus to simulate infrared and ultraviolet rays in outdoor sunlight respectively. The instrument is also equipped with a plexiglass booth and a special aluminum box for easy installation and packaging.

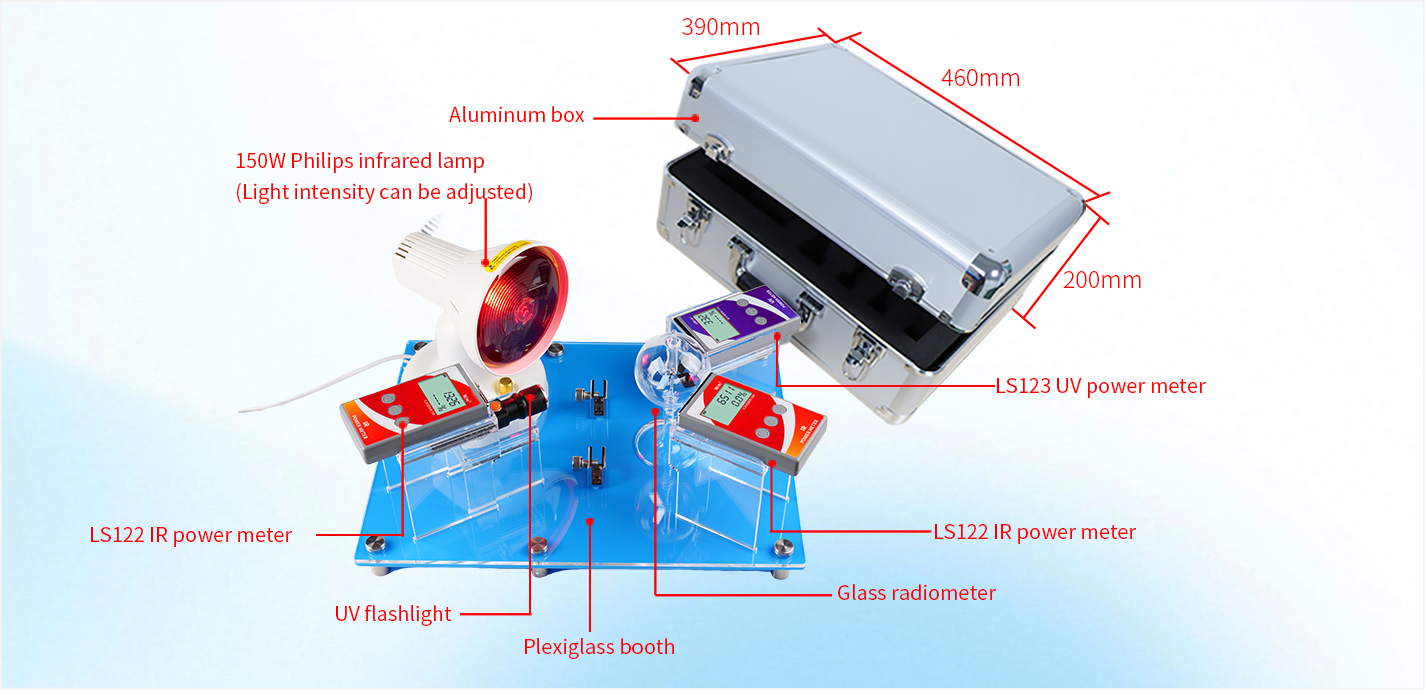

Packing
| No. | Product | Quantity | Unit |
|---|---|---|---|
| 1 | Plexiglass booth | 1 | pcs |
| 2 | 150W Philips infrared light | 1 | pcs |
| 3 | UV flashlight | 1 | pcs |
| 4 | 86123 UV power meter | 1 | pcs |
| 5 | Glass radiometer | 1 | pcs |
| 6 | 86122 IR power meter | 2 | pcs |
| 7 | Aluminum case dimension 46 * 39 * 20 cm(L * W * H) | 1 | pcs |
| 8 | User Manual | 1 | pcs |
| 9 | Certification card | 1 | pcs |
Features
After unpacking, please place the accessories according to the picture below. The name and function of each accessory are as follows. The serial number below corresponds to the serial number in the figure
Glass test slot
It can be used to fix materials such as heat insulation glass and stick-film glass. The width can be adjusted by screws (≤10mm)
150W Philips infrared light
After turning on the light, the intensity of infrared light can be manually adjusted through the knob switch, which is used to simulate infrared light in the sun
Retractable UV flashlight
It is for simulating the ultraviolet rays of the sun, and achieves a concentrating effect by telescoping to adjust the UV intensity and supports USB charging
86122 infrared power meter (next to infrared light)
Placed on the same side of the infrared lamp, it is developed to measure the reflection and heat insulation effect of the measured material. The higher the measured infrared intensity, the better the reflection and heat insulation effect is
86123 UV power meter
Measure the intensity of ultraviolet light passing through the material and calculate the ultraviolet rejection rate of the sample by using the data before and after the material is inserted
Glass radiometer
When infrared rays irradiate the glass radiometer, the blades will rotate. The speed is proportional to the intensity of the infrared rays. If a material with better heat insulation is used to block the infrared rays, the speed of the blade rotation will be significantly reduced
86122 infrared power meter (opposite the infrared light)
Measure the intensity of infrared rays passing through the measured material and calculate the infrared rejection rate of the sample through the data before and after the material is inserted
FAQ
-
1. What's the difference between 863150 and 862150?
The light intensity of the infrared lamp in 863150 sales kit can be adjusted, but the light intensity of the infrared lamp in 862150 sales kit is fixed.
-
2. The glass size for the sales kit
32*20cm is recommended.
