861150 Sales Kit
Evaluating heat-insulating and UV proof property
Suitable for windows and other transparent materials.
Demo UV rejection, IR rejection at the same showcase
150W Philips infrared lamp

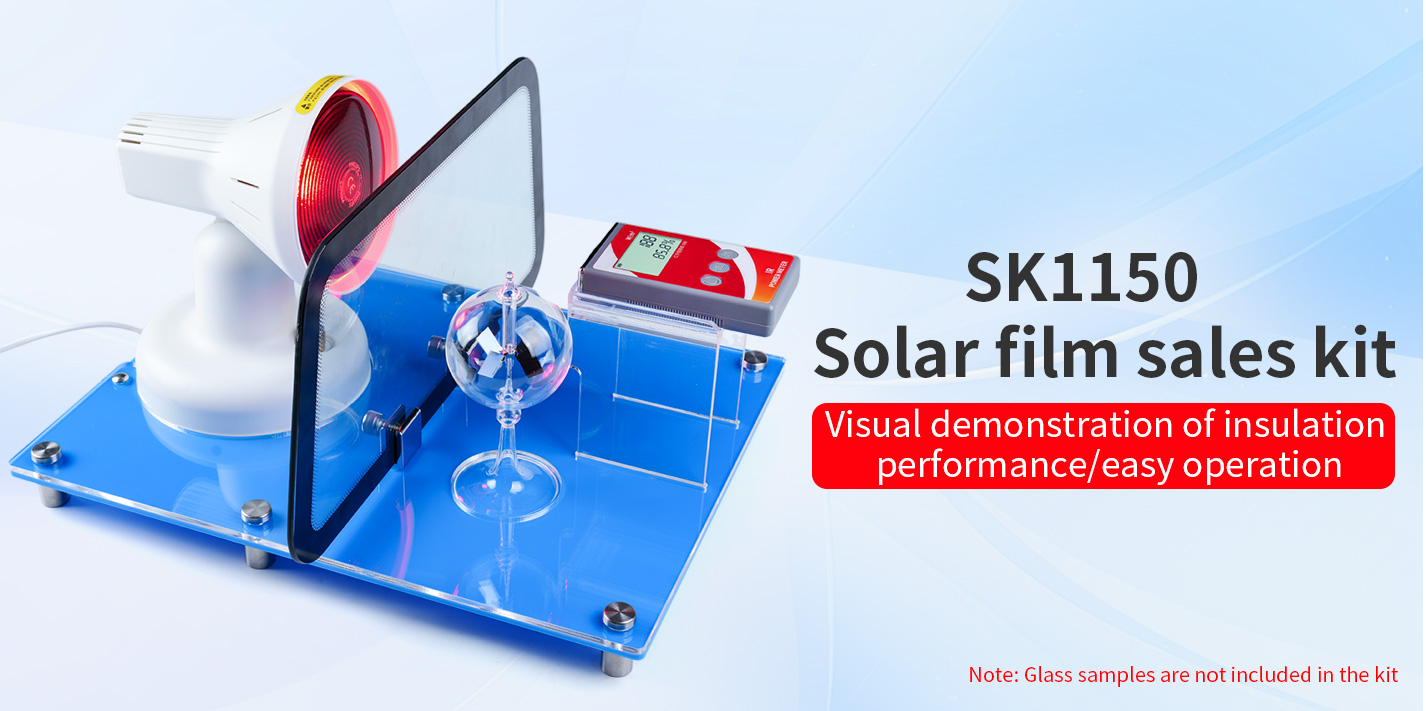

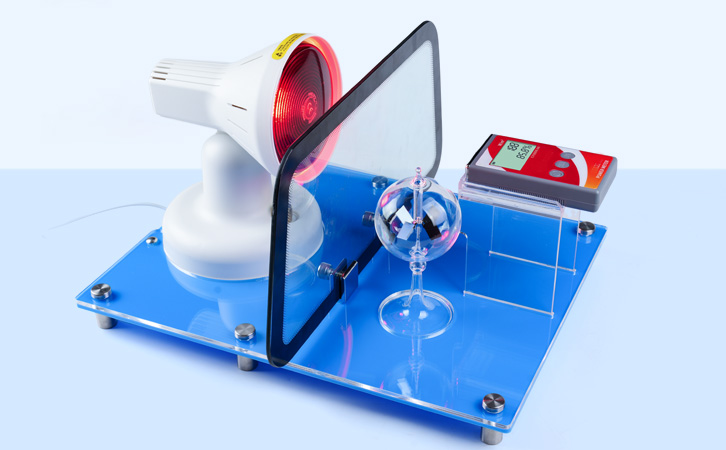

861150 solar film insulation demonstrator is also called sales kit. It is mainly used for solar film, thermal insulation film and energy-saving glass insulation test. The instrument uses Philips 150W infrared light source. The high heat of infrared light makes the entire display process imitate the sun light irradiation which can intuitively allow customers to experience the heat rejection effect of solar film or heat-insulating glass. Customers can also experience the performance differences of different grades of solar film, thermal insulation glass and other products. The sales kit is composed of a variety of instruments, with a special aluminum case, which is convenient to carry out.
Packing

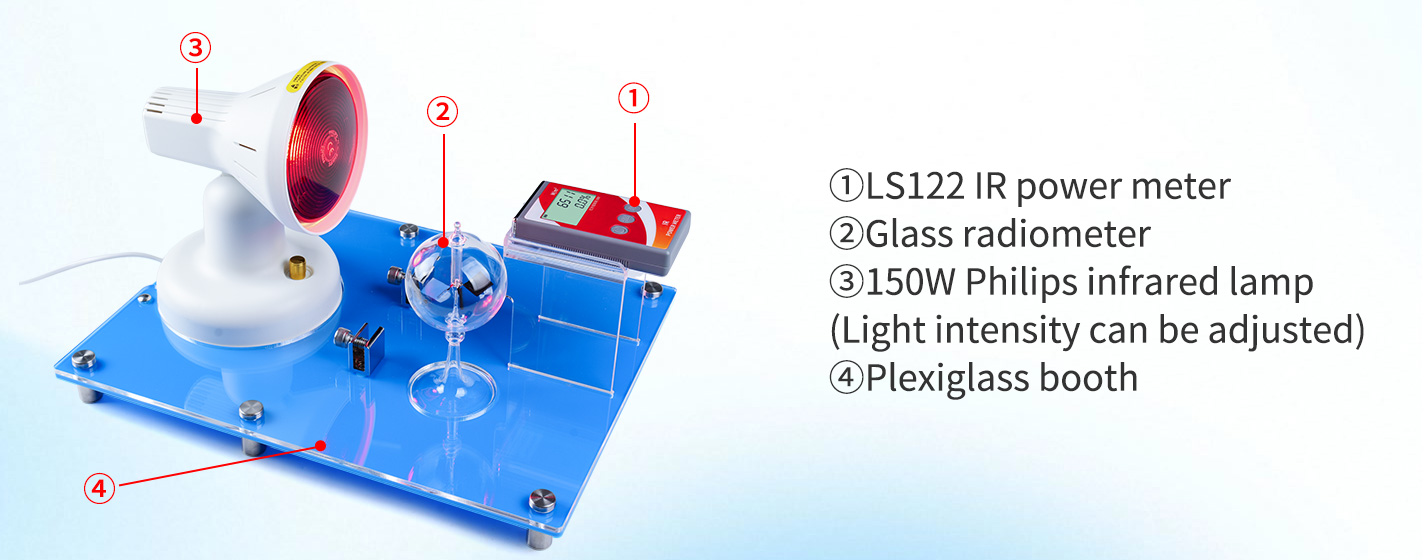

| No. | Product | Quantity | Unit |
|---|---|---|---|
| 1 | Plexiglass booth | 1 | pcs |
| 2 | 150W Philips infrared light | 1 | pcs |
| 3 | Glass radiometer | 1 | pcs |
| 4 | User Manual | 1 | pcs |
| 5 | Certification card | 1 | pcs |

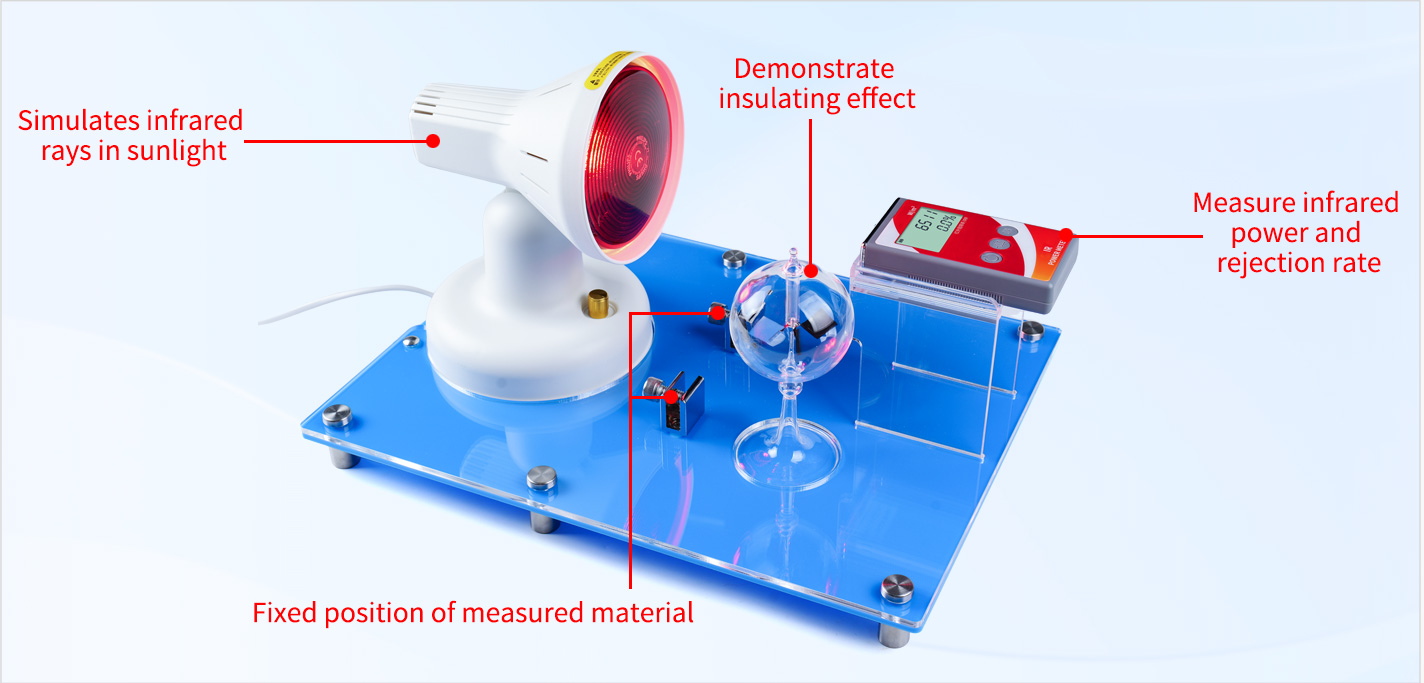

Features
Glass test slot
It can be used to fix insulated glass, film glass and other materials, the width can be adjusted by screws, supporting up to 10mm glass.
150W Philips infrared light
Using genuine Philips infrared lamp, the infrared intensity can be manually adjusted by the knob switch after turning on the light, used to simulate the infrared rays in the sunlight.
Glass radiometer
When the infrared ray irradiation to the glass radiometer, the blade will rotate, the speed and infrared intensity is proportional, if the use of better insulation materials to block infrared, the blade rotation speed will be significantly reduced.

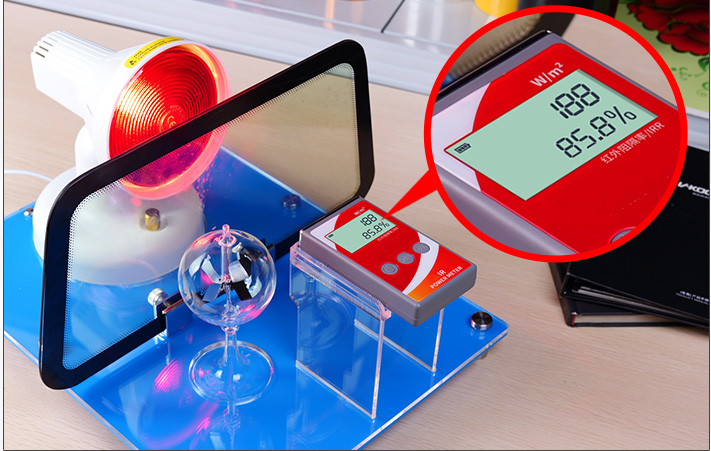

86122 Infrared power meter

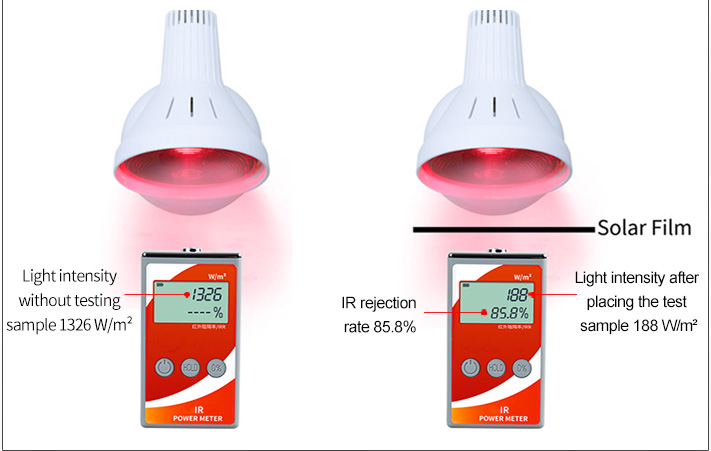

It is an instrument that receives infrared rays and measures the intensity of infrared rays through the material under test. By putting in the data before and after the material, the infrared rejection rate of the sample can be calculated.
