As a leading window film transmission meter (window tint meter) manufacturer, Lshtec provides a variety of window film meters to measure transmission rate, rejection rate for automotive film. There are mainly portable solar film transmission meters of 86160 series, 86162 series, 86163 series.
86160 Transmission Meter
1.Size: 93mm *52mm *25mm(L*W*H);Weigh: 65g (include batteries)
2.VL Peak wavelength: 550nm;UV Peak wavelength: 365nm
3.IR Peak wavelength: 940nm
4.Small size, portable product for transmission value measurement.
86160A Transmission Meter
1.Size: 93mm *52mm *25mm(L*W*H);Weigh: 65g (include batteries)
2.VL Peak wavelength: 550nm;UV Peak wavelength: 365nm
3.IR Peak wavelength: 1400nm
4.Small size, portable product for transmission value measurement.
86161 Transmission Meter
1. Color screen display, more intuitive
2. Freely switch between multiple display modes
3. Simple operation and fast measurement
4. IR Peak Wavelength: 940nm
86161A Transmission Meter
1. Color screen display, more intuitive
2. Freely switch between multiple display modes
3. Simple operation and fast measurement
4. IR Peak Wavelength: 1400nm

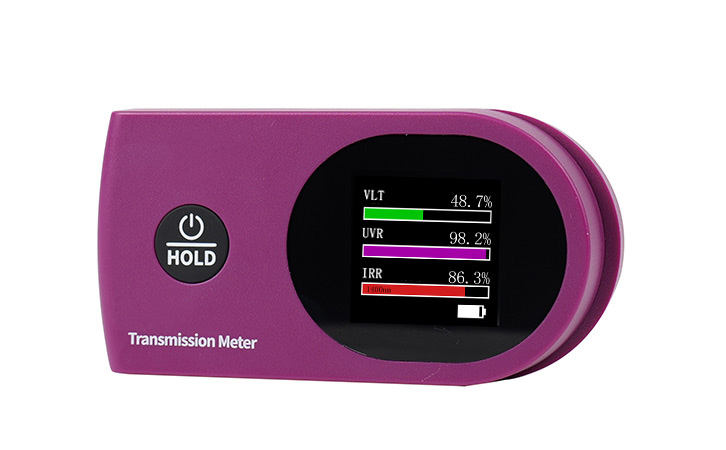

86161H Transmission Meter
1. Test seven parameters: UV, visible light, IR 940nm, IR 1400nm, Full-IR, TSER, SHGC
2. Free switching of multiple display modes
3. Suitable for solar film performance exhibition, production, quality inspection and other occasions
86162 Transmission Meter
Simple operation and backlit LCD display.
Measure VLT of 380-760nm, UV 365nm, IR 940nm.
Measure films/glass up to 8mm.
Two-piece design allows for testing of the windshield.
86162A Transmission Meter
Measure VLT of 380-760nm, UV 365nm, IR 1400nm.
Allows for single hand operation, backlit LCD display.
Measure films/glass up to 8mm.
Two-piece design allows for testing of the windshield.
86163 Transmission Meter
Measure UV 365nm and IR 940nm, visible light transmittance
Resolution reach 0.1%, rotatable display
Using parallel optical path design for testing thick materials
Display light transmittance or rejection rate
86163A Transmission Meter
Measure UV 365nm, IR 1400nm, visible light transmittance
Use parallel light path, width of test notch is 6mm
Rotatable display, light transmittance or rejection rate
Measuring metal film, stick-film glass, automobile windshield
