86161H Transmission Meter
Test seven parameters: UV, visible light, IR 940nm, IR 1400nm, Full-IR, TSER, SHGC
Free switching of multiple display modes
Suitable for solar film performance exhibition, production, quality inspection and other occasions
The instrument is a small and portable transmission meter, a real pocket product. It is suitable for simultaneously testing the IR and UV rejection rate, visible light transmittance,total solar energy rejection (TSER) and solar heat gain coefficient (SHGC)of various film materials (such as solar films, explosion-proof films, etc.). The instrument has a variety of display parameter combinations, and users can choose according to their needs.
Parameters
| Parameter Name | Parameter Value |
|---|---|
| UV Peak Wavelength | 365nm |
| Visible Light Peak Wavelength | 380nm-760nm,CIE function of photopic vision |
| IR Peak Wavelength | Peak wavelength 940nm, 1400nm and Full IR |
| Solar Heat Gain Coefficient | SHGC( 0.000 ~ 1.000) |
| Total Solar Energy Rejection | TSER（0.0%-100%) |
| Resolution | 0.1% |
| Accuracy | ±2% (colorless uniform light-transmitting material) |
| Maximum Sample Thickness | 0.8mm |
| Display | 240*240 dot matrix TFT color screen |
| Weight | about 70g (exclude batteries) |
| Size | 101mm *52mm *25.5mm (L*W*H) |
| Power Supply | 4*AAA alkaline battery |
Features
Seven-band test, more comprehensive measurement
The instrument supports seven optical parameter tests: UV, visible light, IR 940nm, IR 1400nm, full-IR, SHGC and TSER, meeting the measurement needs of different thin film materials.
Measure SHGC and TSER

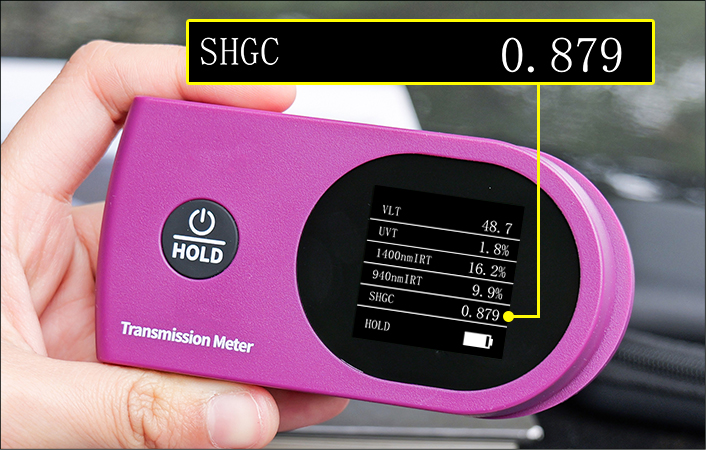

The instrument can test the solar heat gain coefficient (SHGC) and total solar energy rejection (TSER) , offering a more comprehensive evaluation of solar film insulation performance.
Color screen display for clear data visualization
The instrument features a dot matrix TFT color screen that displays IR, UV rejection rates, and visible light transmittance with color-coded progress bars for clear, intuitive results.
Easily switch between multiple display modes

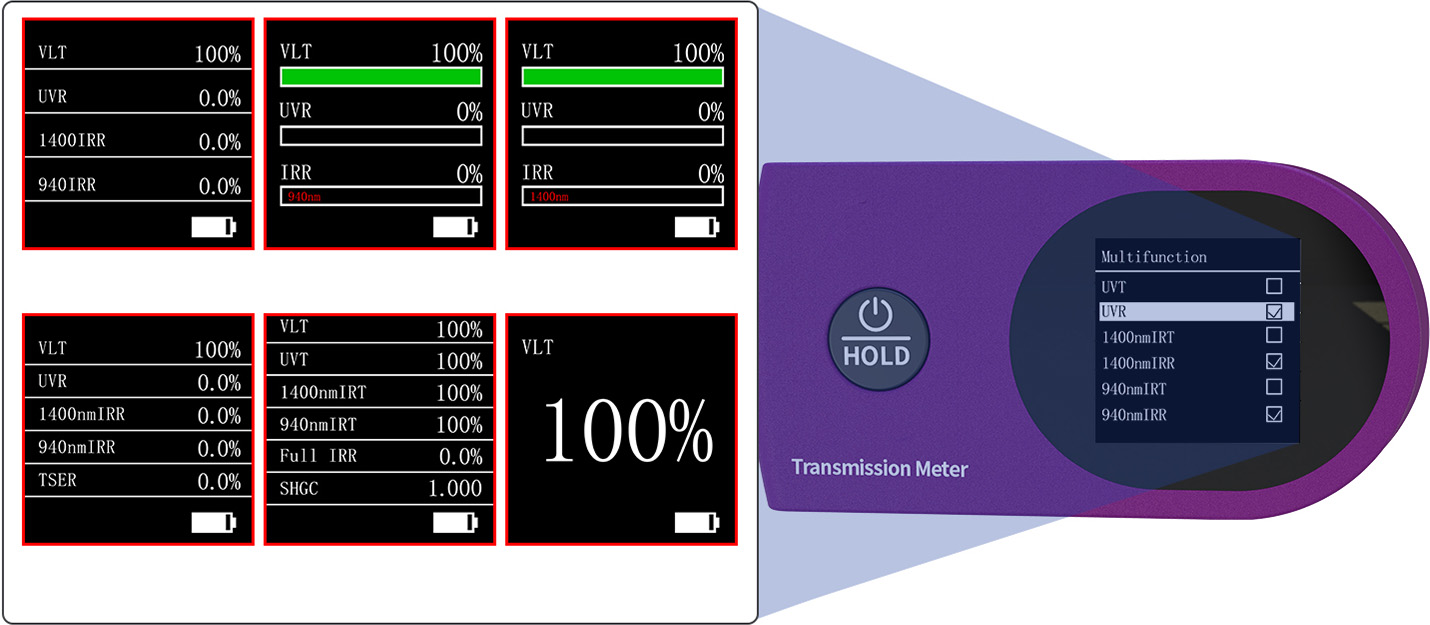

Different display modes such as rejection rate, transmittance, single display transmittance, etc. can be set.
Compact and Portable
The pocket-sized transmission meter is lightweight and easy to carry, fitting seamlessly into your pocket for convenient measurements on the go.
Real-time dynamic calibration function
The solar film transmission meter has real-time dynamic calibration function. It will self-calibrate if no material in the test slot which is to ensure the accurate test data.
Easy operation
With a user-friendly design, the instrument requires no complicated settings. Just place the film into the test slot, and it will automatically detect and display the measurement results instantly.
Lock data by pressing HOLD button
Press HOLD button can lock data on the screen. Taking away the material, the data is still showed on the screen.
Auto-rotating screen
The instrument’s display can rotate 180°, making it easier to operate and read measurement data.
Ultra-low power consumption, energy efficient
Powered by 4 AAA batteries, the instrument offers long-lasting performance and easy replacement. Its automatic shutdown after 3 minutes of inactivity ensures energy efficiency and extended usage.
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Transmission Meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate / warranty card | 1 | pcs |
| 4 | Storage bag | 1 | pcs |
