86330 Spectral Illuminance Meter
Measurement of Lux, CCT, UVI and other parameters
Multi-parameter measurement, wider application
1,000,000Lx ultra-large range design
Spectral sensor suitable for human eyes spectrum, more accurate
High precision, pass authoritative metrology inspection
86330 spectral Illuminance Meter is a versatile instrument designed with a spectral sensor. It is used for measuring illuminance, UV index, flicker frequency, standard deviation of color matching (SDCM), color rendering index (CRI), correlated color temperature (CCT), blue light hazard ratio, temperature, and humidity in various scenarios such as lamps and lanterns lighting, outdoor lighting, greenhouse lighting, and stage lighting. The instrument also can display the spectral curve, which helps identify the type of lighting fixture.
Parameter
| Parameters | Values |
|---|---|
| Illuminance Wavelength Range | 400nm ~ 700nm |
| Illuminance Wavelength Interval | 10nm |
| Illuminance Measurement Range | 0 ~ 1000000Lx |
| Illuminance Resolution | 0.1Lx |
| Illuminance Measurement Accuracy | ≤±(3%H + 2Lx) (H is the standard value, calibrated under CIE standard A light source) |
| Illuminance Unit Options | Lx(default), FC |
| Correlated Color Temperature Measurement Range | 1000 ~ 100000K |
| Correlated Color Temperature Measurement Accuracy | ±5% |
| UV Index Measurement Range | 0.0 ~ 15.0 |
| UV Index Measurement Accuracy | ±0.5 |
| Flicker Frequency Measurement Range | 10 ~ 500HZ |
| Flicker Frequency Measurement Accuracy | ±5% |
| Temperature Measurement Range | -20℃ ~ 80℃ |
| Temperature Measurement Accuracy | ±0.5℃ |
| Humidity Measurement Range | 0%RH ~ 90%RH |
| Humidity Measurement Accuracy | ±4%RH |
| Response Time | <0.7s |
| Test Aperture Diameter | Φ21mm |
| Size | Length 188.5mm, Width 75.2mm, Height 30.3mm |
| Weight | About 232g (including batteries) |
| Display | 240*160 Dot Matrix LCD |
| Power Supply | 2 AA Alkaline Batteries |
| Operating Environment | Temperature 0 ~ 40℃, Humidity <85%RH |
Features
Multi-parameter, wider application
The instrument can measure illuminance, color temperature, flicker frequency, UV index, SDCM, CRI, temperature, and humidity simultaneously. It displays spectral curve for comprehensive evaluation of lighting characteristics.
High-precision spectral sensors suitable for human eyes spectrum
The instrument is designed with a spectral sensor, and the spectral response matches the V(λ) function. This ensures accurate measurement precision.
1 million Lx measurement range, suitable for both strong and dim light
Ultra-large range design, range up to 1 million Lx, both strong and dim light can be measured accurately.
Flicker measurement, easily determine if lighting meets requirements
The instrument features a flicker measurement function, can evaluate whether lighting meets requirements based on flicker frequency and percent flicker. This provides reference for sales and R&D of lighting.
Measurement of CCT
The instrument measures correlated color temperature, aiding lighting manufacturers in fixture development and lighting design.
CRI and SDCM measurement
The instrument has CRI and SDCM measurement function, clearly showing the difference between the testing light source and the standard light source.
Display blue light hazard ratio
The blue light hazard ratio can be displayed to objectively evaluate the blue light hazard of the lighting source.
(The blue light hazard ratio is the ratio of the blue light hazard to the corresponding radiation amount. The larger the ratio, the greater the proportion of blue light.)
Spectral curve measurement
The instrument has spectral measurement function, allowing identification of spectral gaps and blue light protection capabilities.
Measure UV index, temperature, and humidity

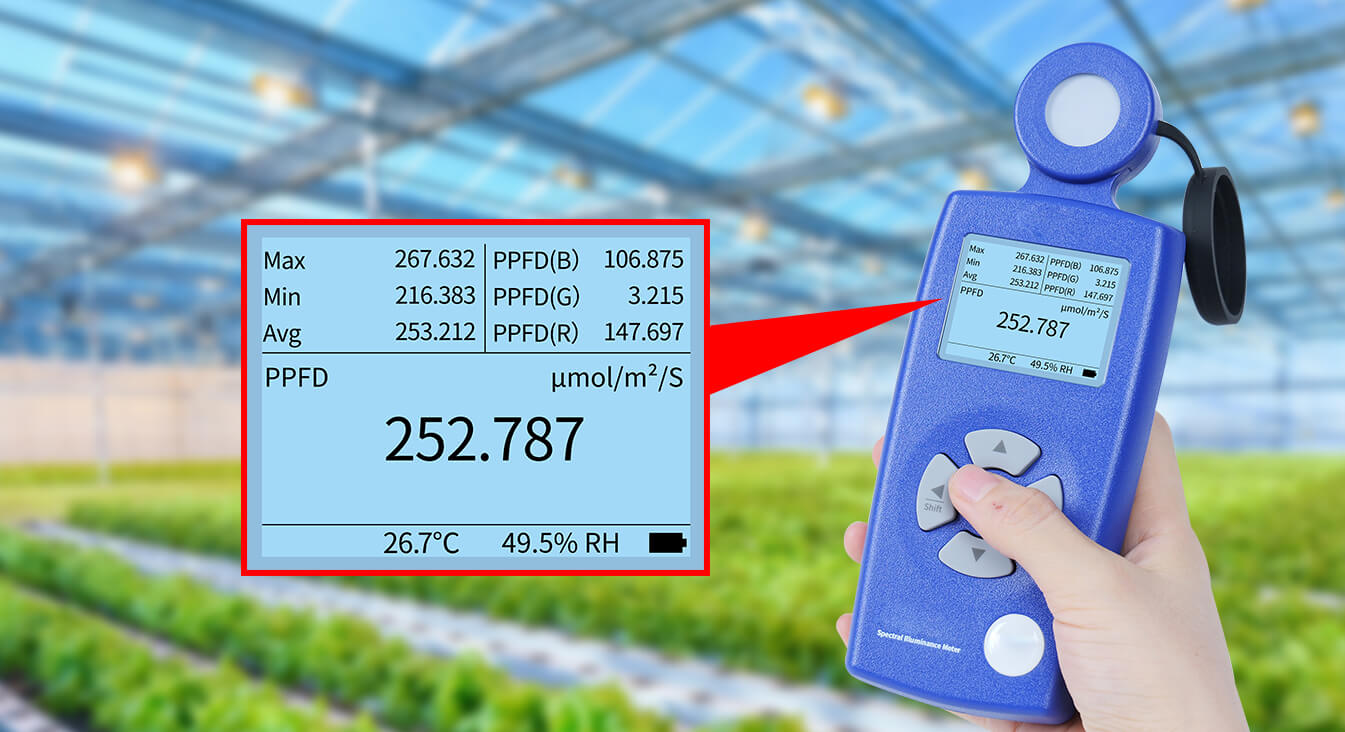

The instrument also measures environmental parameters such as UV index, temperature, and humidity, making it suitable for evaluating plant lighting sources.
Rich statistical functions
Simultaneously displays real-time, maximum, minimum, and average illuminance values.
Advanced digital probe technology
The instrument uses advanced digital probe technology, digital signal processing done directly at the probe.This reduces interference and provides excellent measurement accuracy.
Instant refresh, response time less than 0.7s
AutoOff can prevent battery drain
Switchable between Lx and Fc
Qualifications and Standards
Standards for the product：
JJG 245-2005 Verification Regulation of Illuminance Meter
JJG 212-2003 Verification Regulation of Color Temperature Meters
GB 50034-2013 Standard for lighting design of buildings
GB 40070-2021 Hygienic requirements of study products for myopia prevention and control in children and adolescents
GB/T 5702-2019 Method for measuring the color rendering properties of light sources
GB/T 9473-2017 Performance requirements for table lamps for paper task
GB/T 18204.21-2000 Standard examination methods for public places
GB/T 20145-2006 Photobiological safety of lamps and lamp systems
GB/T 21005-2007 UV erythema reference action spectrum,standard erythema dose and UV index
QX/T 87-2008 UV index forecast
GBZ 39942-2021 Application of GB/T 20145 for the assessment of blue light hazard to light sources and luminaires
IEEE Std 1789-2015 “IEEE Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers”
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Spectral Illuminance Meter | 1 | pcs |
| 2 | AA Battery | 2 | pcs |
| 3 | User Manual | 1 | pcs |
| 4 | Calibration Report | 1 | pcs |
| 5 | Certificate/Warranty Card | 1 | pcs |
