86195 Gloss Meter

Cost-effective gloss meter

Put and test, easy to operate
Support QC mode to improve measurement efficiency
High precision, and conform to Chinese Grade 1 gloss meter standards

User Manual

It is a handheld gloss meter with a range of 0-200GU. It is professionally used for the surface gloss measurement of paint, coating, ink, plastic, paper, ceramics, stone, metal and other materials. The operation on the device is simple. You just put and measure, and no need for waiting.  In addition to normal mode, the device can also be set to QC mode, which can realize quick QC measurement to improve efficiency.


The feature introduction video


the glossmeter measures

The glossmeter measures metal

the glossmeter measures plastic

The glossmeter measures plastic

the glossmeter measures printing sample

The glossmeter measures printing sample

the glossmeter measures wooden furniture

The glossmeter measures wooden furniture


Parameter Value
Measuring Angle 60°
Measuring Aperture 9mm*15mm
Minimum Test Material Size 20mm*10mm
Measuring Range 0-200GU
Resolution 0.1GU
Repeatability 0-100GU:±0.2GU
Reproducibility 0-100GU:±0.5GU
Zero Error 0.1GU
Indication Error 0-100GU:±1.5GU
Weight About 237g
Power Supply Lithium rechargeable battery 3.7V@650mAh
Display 240×128 Dot Matrix
Language Simplified Chinese, English
Charge Port USB(Type-C)
Data Transmission USB
Working Temperature 10~45℃,0~85%RH (no condensation)
Storage Temperature -10~60℃,0~85%RH (no condensation)


Fair price, High quality

In order to meet the needs of different customer groups. Our gloss meter breaks through the bottom line in price and hits a record low. In terms of quality, it strives for excellence

Repeatability can reach 0.2GU, Data are as stable as mountains

Using advanced chips and sensors with the unique 50-point linear fitting algorithm, its repeatability reaches ±0.2GU and resolution reaches 0.1GU. All these have contributed to unimaginable user experiences

Our device conforms to Grade 1 gloss meter standards

The accuracy of the device in the full range meets the Grade 1 gloss meter standards, which ensures that it passes the inspection of the authoritative Chinese metrology organization. Not all gloss meters can do it.

Just put and measure, Refuse to wait

After the device is turned on, there is no need of button operations. You can get results in 0.5s after measuring

QC mode for auto qualification

In addition to normal mode, the device also supports QC mode. In this mode, the user can customize the upper and lower limits for qualification judgment. This mode is suitable for batch testing.

Mode selection interface

Mode selection interface

Normal mode

Normal mode

QC mode

QC mode

the glossmeter measures plastic sample in normal mode

The glossmeter measures plastic sample in normal mode

the glossmeter measures plastic sample in QC mode

The glossmeter measures plastic sample in QC mode

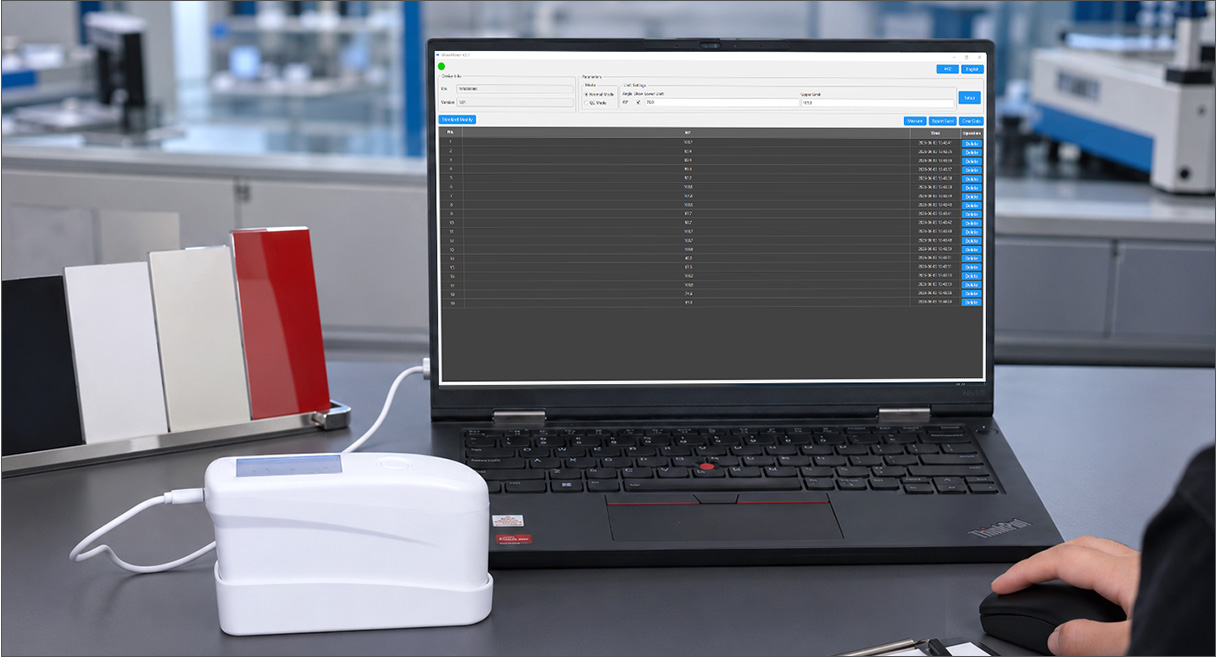

Support PC software to generate test reports

The device provides pc software and supports online measurement. The computer can perform intelligent statistics on the data and generates measurement reports, which makes the measurement more professional.

Smooth appearance, comfortable grip

It adopts ivory white engineering plastic housing with smooth appearance and ergonomic design. It fits closely with every thread in your palm, which gives you a comfortable grip

Long battery life, energy-saving and environmental

The device has an auto shutdown function. It has a built-in lithium battery characteristic of a long-lasting battery life and continuous measurement of 115,200 times when fully charged

60°universal angle design and widely used in many fields

0-200GU measurement range to meet most measurement needs

Environment temperature compensation. No frequent calibrations are required

Upon power on, short press the button and calibration is complete


The glossmeter conforms to the following standards:

The gloss meter complies with the standards: ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807. All device indices have reached the first-class working machine standards as stipulated in Chinese JJG 696-2015 Verification Regulation of Specular Gloss Meters and Gloss Plates.

Software Installation

Software download

The device can be controlled by the PC gloss meter software after connection with the computer via USB (The software only supports Windows). The software can realize functions such as online measurement, parameter setting, report generation and printing.

The PC gloss meter software can be installed in the following ways:

  • The PC software packed with the device. No need to install, just run directly.

  • Download the software to the local computer, and run it directly after decompression.Click to download
