86192 Gloss Meter

In line with Chinese Grade 1 gloss meter standard

60° universal angle, measuring range reachs 1000GU
Provide free PC software
Automatically judge whether the data is qualified in QC mode

User Manual

The gloss meter is a hand-held gloss meter with universal measuring angle 60° and its measuring range can reach 1000GU. The instrument is widely used in surface gloss measurement on paint, coating, metal, ceramics, stone, printed material. It's so convenient that you can use even without pressing button. QC mode is optional to conduct quick QC process. Intelligent data statistics and test report can be generated by connecting PC software.


How to use our gloss meter


gloss meter measures ceramic

gloss meter measures ceramic

gloss meter measures paint

gloss meter measures paint

gloss meter measures wood

gloss meter measures wood

gloss meter measures car

gloss meter measures car


Parameter Value
Measure angle 60°
Measuring aperture 9mm*15mm
Minimum test material size 20mm*10mm
Test Range 0-1000GU
Resolution 0.1GU
Repeatability 0-100GU:±0.2GU
100-1000GU:±0.2% reading
Reproducibility 0-100GU:±0.5GU;
100-1000GU:±0.5% reading
Zero error 0.1GU
Error of indication 0-100GU:±1.5GU
100-1000GU:±1.5% reading
Weight 300g
Battery capacity rechargeable lithium3.7V@1000mAh
Display 192×64
System language Chinese(Simplified), English
Charging interface USB(Type-C)
Data Interface USB
Working temperature 10~45℃,0~85%RH(no drew)
Storage temperature -10~60℃,0~85%RH(no drew)
Packing List Gloss meter, USB cable, U disk with software, special lens cloth,user manual, warranty card


Easy to operate

The instrument is easy to use. All you have to do is to put the instrument on the surface of the material and read the result in the screen

Precise measurement

The accuracy of the device in the full range meets the Grade 1 gloss meter standards, which guarantees to pass the inspection of the authoritative Chinese metrology organization

Calibration Device Standard Gloss Meter Grade 1 Gloss Meter Grade 2 Gloss Meter
Stability 0.2GU 0.4GU 1.0GU
Zero Error 0.1GU 0.2GU 1.0GU
Indication Error ±1.0GU ±1.5GU ±2.5GU

Dual Mode

Our glossmeter has dual measurement modes that are applicable to different occasions. One is normal mode in which you can quickly read measurement results after putting the instrument on the material. Another is QC mode in which it can automatically judge whether the result is qualified

Mode Select Interface

Mode Select

Normal Mode

Normal Mode

QC Mode

QC Mode

measurement in normal mode

measurement in normal mode

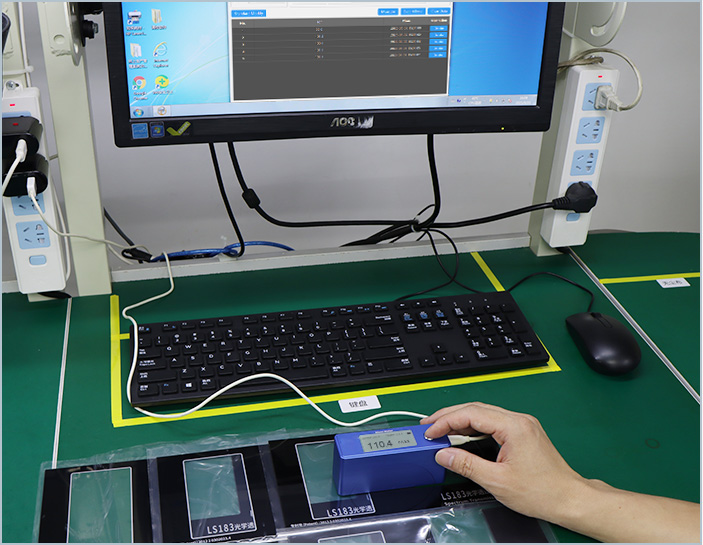

measurement in qc mode

measurement in qc mode

Portable and Smart

The instrument shell is made of aluminum, which is small and convenient to carry out

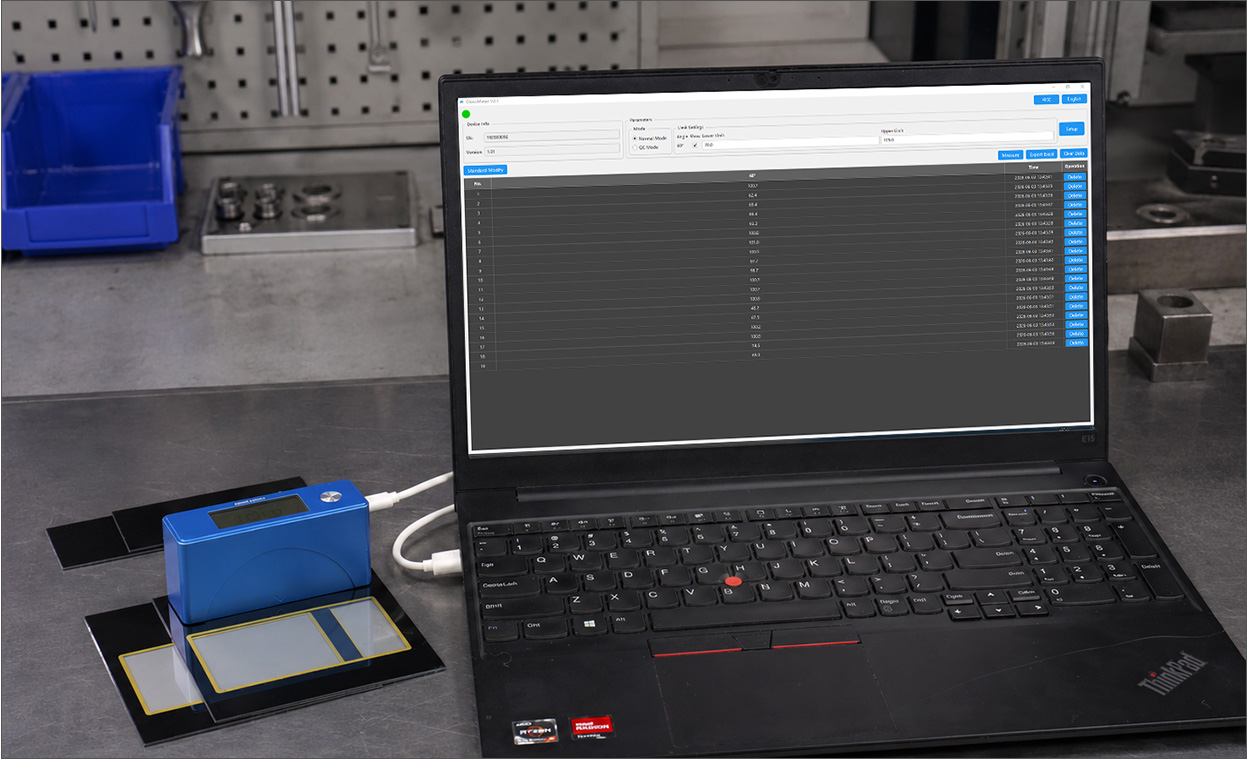

Powerful PC software support

Equipped with PC software ( supporting Windows only), it can measure, generate and print test report by connecting with PC software

60°universal angle design and widely used in many fields

Long battery life, energy-saving and environmental

Advanced temperature compensation technology

After powering on, short press the button and calibration is conducted


Our glossmeter conforms to following standards:

ISO2813,ISO7668,ASTM D523,ASTM D2457,DIN 67530,GB/T9754, GB/T13891,GB/T7706, GB/T8807, also meeting all the requirements of 1st class working machine calibration in JJG 696-2015 Verification Regulation of Specular Gloss Meters and Gloss Plates


Software download

Use software to measure, set parameters, generate report and print test report by Connecting PC via USB cable( PC software only support Windows system). Software can be installed by the options as following:

  • run the PC software in the U-disk in the packing, no need of installation;

  • download online to save in the local disk, and run after unzipping. Click to download
