86190 Gloss Meter

Affordable and economic gloss meter

One movement, one result. Easy to operate
Support QC mode to improve measurement efficiency
Conform to Chinese secondary-class working machine standards

User manual

The instrument is a handheld gloss meter with measuring range of 0-200GU that meets the national standard of secondary working machine which means accurate measuring and stable data. It is professionally used for the surface gloss measurement of paint, coating, ink, plastic, paper, ceramics, stone, metal and other materials. It is easy to use and you can get the measurement results at once after testing. No more time to wait.  In addition to normal mode, the device can also be set to QC mode, which can realize quick inspection to improve efficiency.

glossmeter tests ceramics

Glossmeter tests ceramics

glossmeter tests leather sofa

Glossmeter tests leather sofa

glossmeter tests brochure

Glossmeter tests brochure

glossmeter tests cars

Glossmeter tests cars

Video

Parameters

Parameter Value
Measuring Angle 60°
Measuring Aperture 9mm*15mm
Minimum Test Material Size 20mm*10mm
Measuring Range 0-200GU
Resolution 1GU
Repeatability 0-100GU:±1GU
100-200GU:±1%reading
Reproducibility 0-100GU:±1GU
100-200GU:±1%reading
Zero Error 1GU
Indication Error 0-100GU:±3GU
100-1000GU:±3%reading
Weight About 237g
Power Supply Lithium rechargeable battery 3.7V@600mAh
Display 240×128 Dot Matrix
Language Simplified Chinese, English
Charge Port USB(Type-C)
Data Transmission USB
Working Temperature 10~45℃,0~85%RH (no condensation)
Storage Temperature  -10~60℃,0~85%RH (no condensation)

Features

Lower price but high quality, worthy

Our gloss meter breaks through the bottom line in price and hits a record low. In terms of quality, it strives for excellence as usual

Accurate and stable

Adopting the imported chips and sensors with the unique 50-point linear fitting algorithm, the repeatability of the instrument reaches ±1GU and resolution reaches 1GU that means accurate measurement and stable data which can bring a good user experiences

Conform to Grade 2 working machine standards

The accuracy of the device in the full range meets the Chinese Grade 2 working machine standards, which ensures that it passes the inspection of the authoritative Chinese metrology organization

Easy to operate, Refuse to wait when testing

The gloss meter can start measuring directly after turning on, no more extra steps, that is, users can get the measurement results quicly without waiting

QC measurement mode realizes auto qualification

It supports QC (Quality Control) mode in which the user can set the upper and lower limits for qualification judgment. This mode is suitable for batch testing

LS190 mode selection interface

LS190 mode selection interface

Normal mode

Normal mode

QC mode

QC mode

Measuring in normal mode

Measuring in normal mode

Measuring in QC mode

Measuring in QC mode

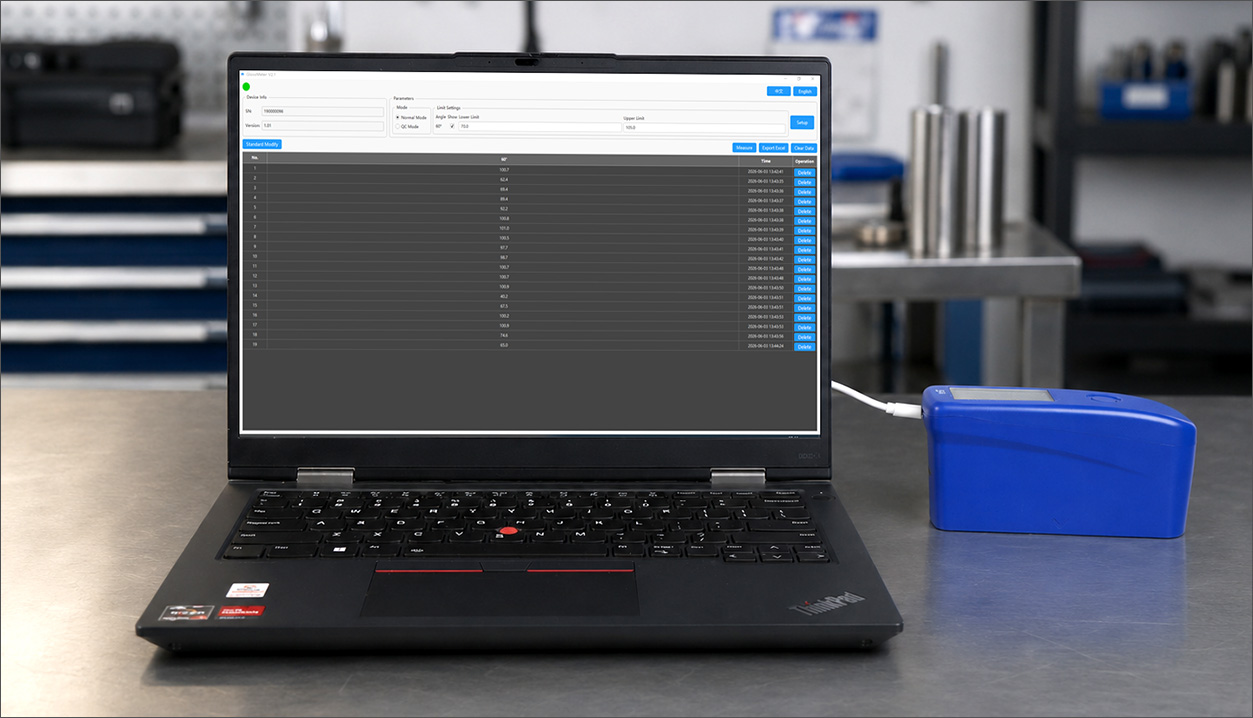

Providing free PC software and test reports generation

The gloss meter provides PC software and supports online measurement. The computer can perform intelligent statistics on the data and generates measurement reports, which makes the measurement more professional

Smooth appearance, and comfortable grip

Ivory blue engineering plastic housing creates a smooth appearance, simple and generous. It fits closely with every thread in your palm, giving a comfortable grip

Long battery life, energy saving and environmental protection

Featuring an auto shutdown function, it has a built-in lithium battery characteristic of a long-lasting battery life and continuous measurement of 115,200 times when fully charged

60° classic angle design for wider applications

0-200GU measurement range can meet various measurement needs

Environment temperature compensation technology makes sure the data are stable

Upon power on, press the button for only one time, and calibration is complete

Standards

Our product conforms to the following standards:

ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807.

All device indices have reached the secondary-class working machine standards as stipulated in Chinese JJG 696-2015 Verification Regulation of Specular Gloss Meters and Gloss Plates.

Software Download

The device can be controlled by the PC gloss meter software after connection with the computer via USB (The software only supports Windows). The software can realize functions such as online measurement, parameter setting, report generation and printing.

The PC gloss meter software can be installed in the following ways:

 1) The PC software packed with the device. No need to install, just run directly.

2) Download the software to the local computer, and run it directly after decompression.Click to download
