86175 45°/0° Colorimeter with 20mm Aperture

Large measuring aperture up to 20mm
Suitable for textured or rough surface materials such as textiles
3.5-inch IPS color display and capacity touch panel offer simple operation

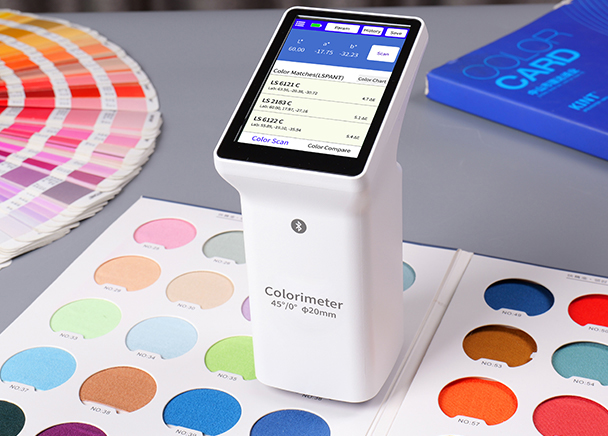

Multiple electronic color charts, precise color matching
CIE Lab color deviation indication

User Manual

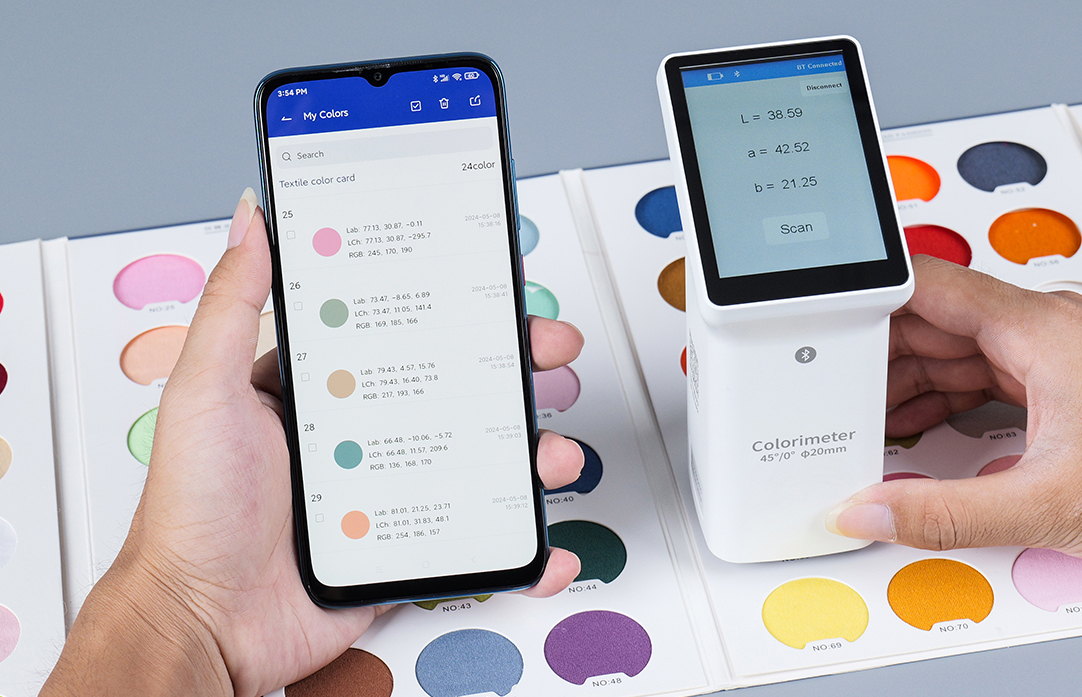

86175 is a handheld 45/0 illumination geometry colorimeter with a large 20mm measuring aperture, a 3.5-inch IPS color capacity touch screen, and can connect with mobile phone or PC. This device can work independently without connecting APP on mobile phone or PC software. Several color charts helps matching the closest color number of scanned color in short time. The device also has color comparison function, supporting multiple methods of adding standard. Availability of setting threshold of color difference ensures QC quick inspcetion. The device can connect APP and PC software, expanding its functions such as color sharing and printing report.

As it can measure larger area to acquire more even color data with its large 20mm measuring aperture,86175 has wide application in color measurement and widely used in industries of textiles, leather,fabrics and wood furniture.

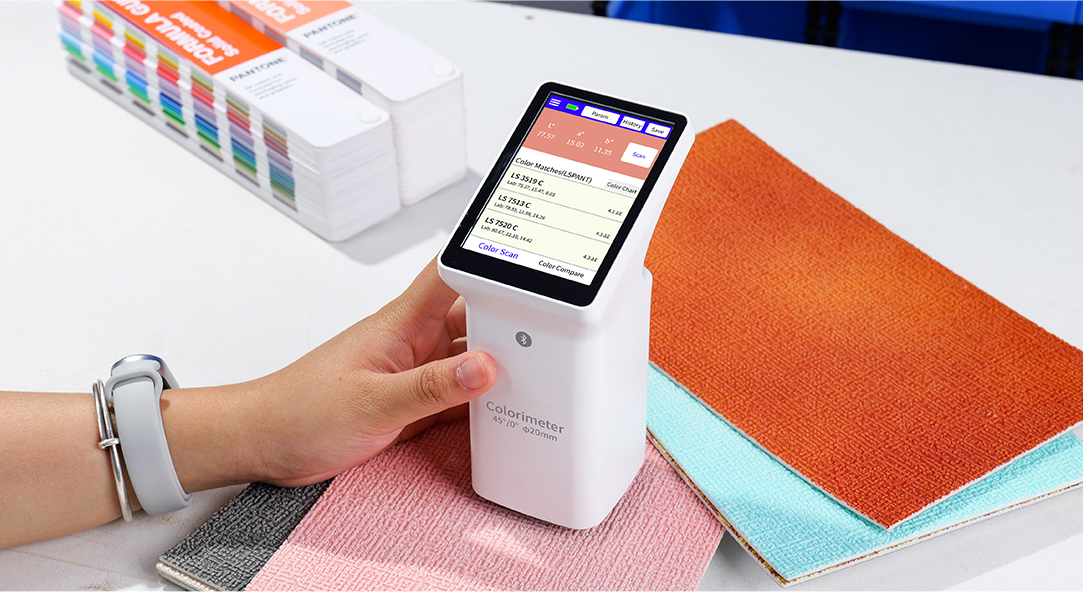

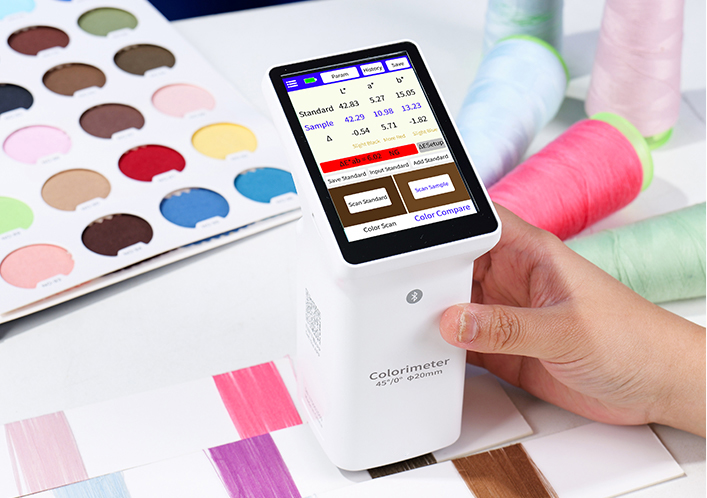

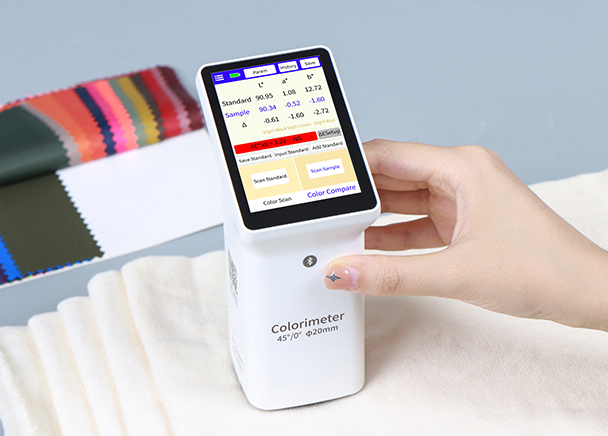

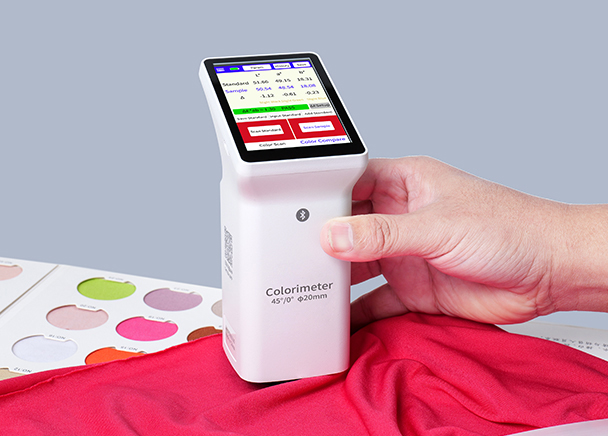

Color comparison on textile

Color comparison on textile

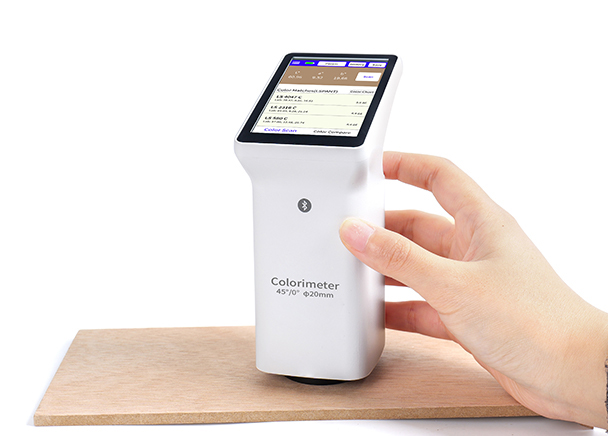

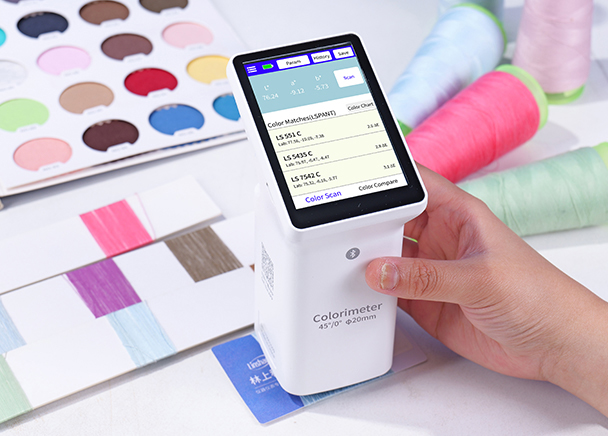

Scan color on board

Scan color on board

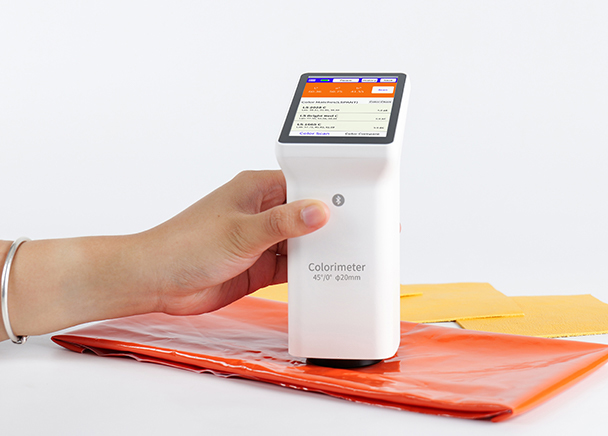

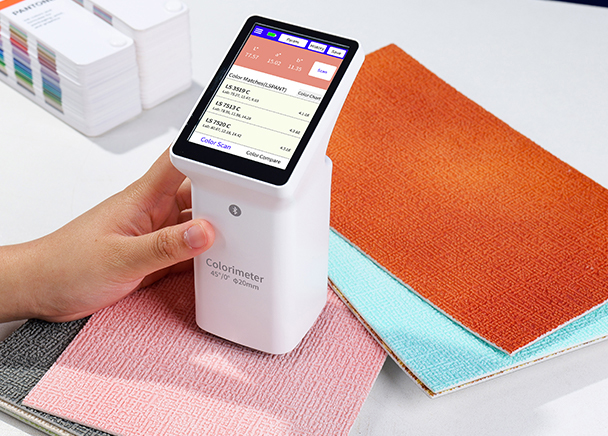

Scan color on leather

Scan color on leather

Scan color on meat

Scan color on meat

Parameter

Parameter Value
Illumination geometry 45/0 (45° annular illumination, 0° viewing angle)

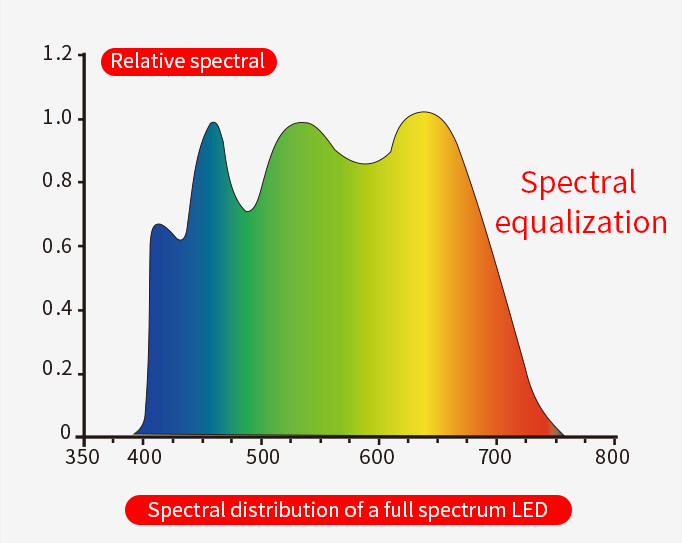

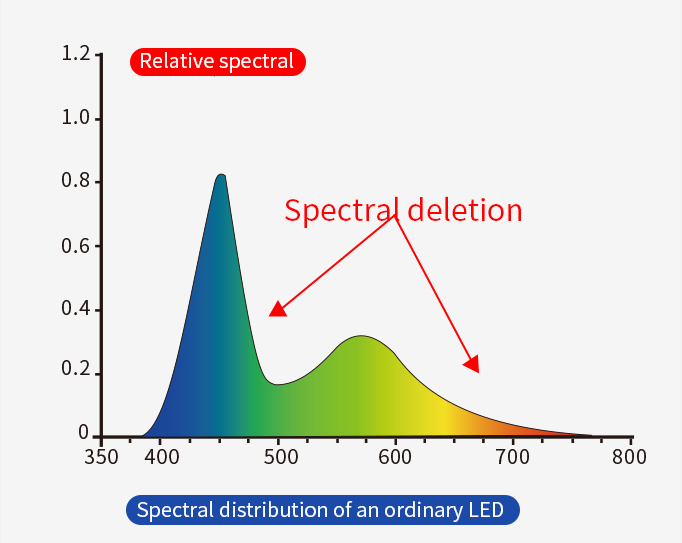

Illumination light source Full spectrum LED light source

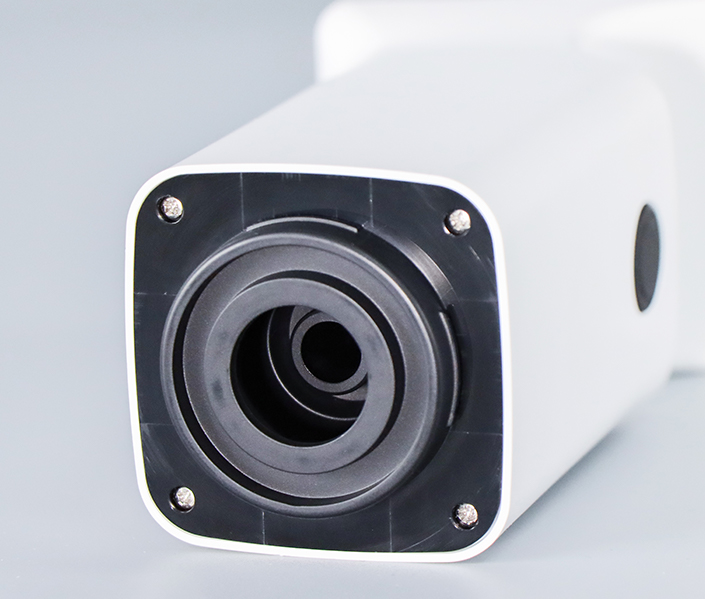

Measuring aperture 20mm
Measurement conditions Light source D65, field of view 10°
Measuring time 1s
Color space CIE Lab、Luv、LCh、Yxy、CMYK、RGB、Hex

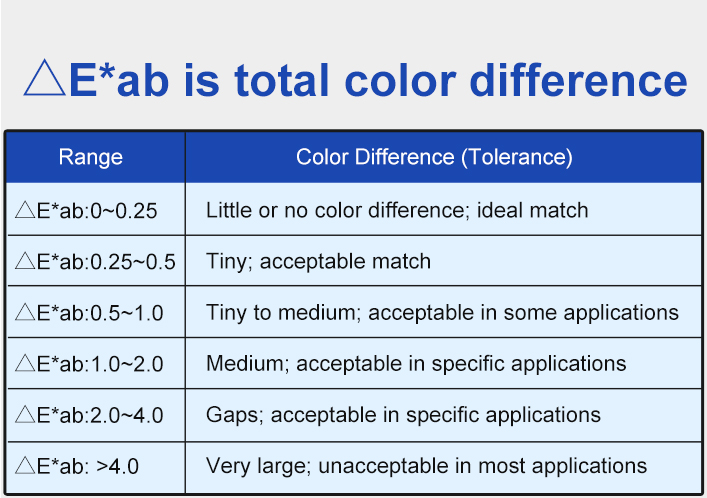

Color difference formula ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00
Repeatability Standard deviation ΔE*ab ≤ 0.03
(Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration)
Dimension 86mm X 62.5mm X 158mm
Weight 225g
Power supply Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge
Display 480×320 dot matrix IPS color screen
Language Simplified Chinese, English
Charging port USB(Type-C)
Data transmission USB, Bluetooth
Operating temperature range 0~45℃,0~85%RH(no condensation)
Storage temperature range -25~55℃,0~85%RH(no condensation)

Feature

Large measuring aperture, higher precision

As it can measure larger area with its large 20mm measuring aperture, the device ensures higher precision on the test results as it acquires more even color data when measuring textured or rough surface materials.

Touch screen makes measurement convenient

The device adopts a 3.5-inch IPS color capacity touch screen, no need to operate by pressing button. It offers smooth user operation experience and interactive interface, simple operation.

Portable and Precise

Portable size, durable and stable architecture with ergonomic design ensures more stable test results.

Providing multiple sets of electronic color charts

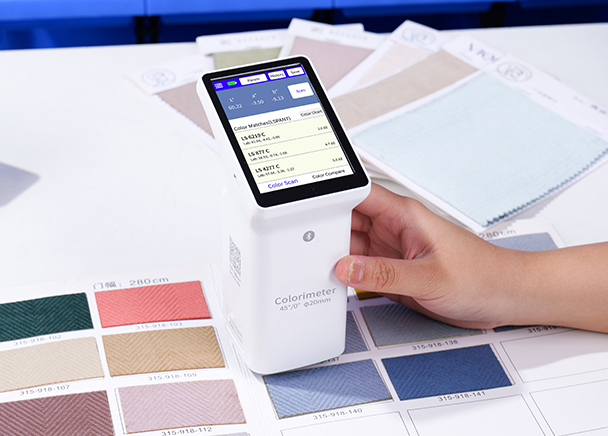

The device provides multiple sets of electronic color charts applicable for many industries (RAL, Pantone, NCS), can quickly match 3 closest serial numbers in the color charts with precision rate over 90%,  keeping your hands free from carrying heavy color charts.

Color scan and Color Compare function

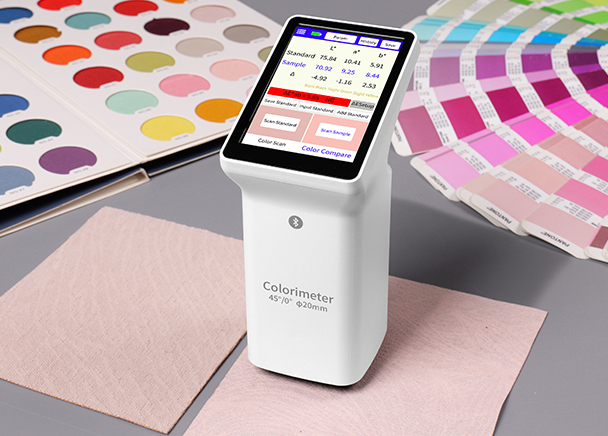

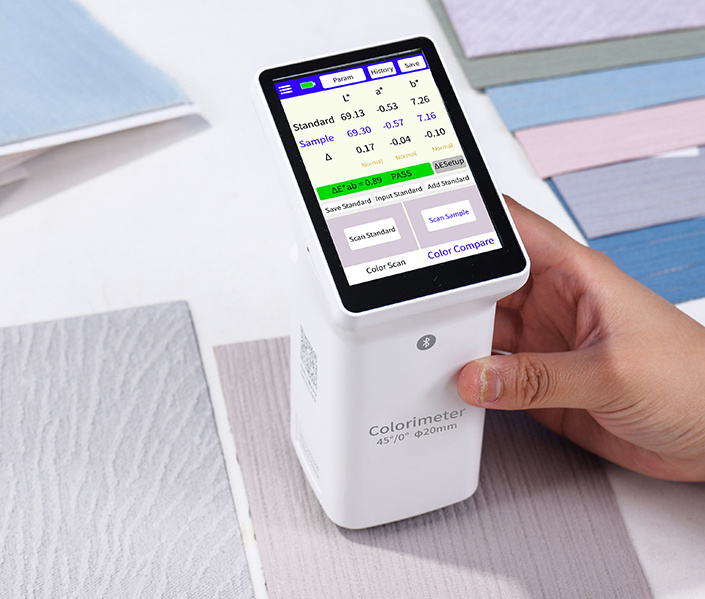

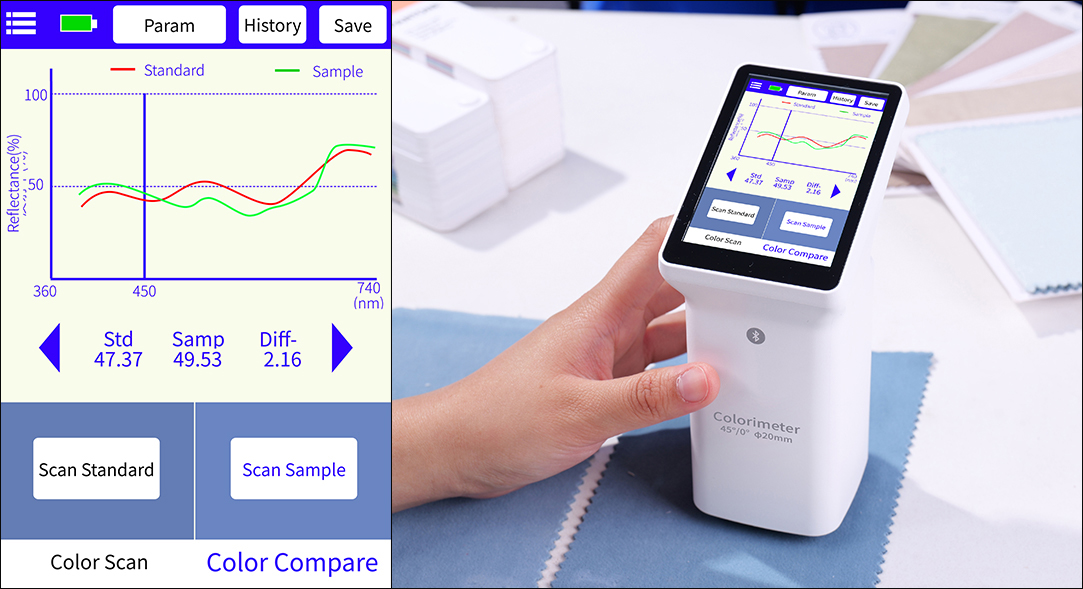

86175 has two main functions: Color scan and Color compare. You can get result within 1 seconds when using Color scan function. Quality Control inspection can be realized in Color compare function that color deviation on 3 Lab color channels will be prompted, offering reference for color toning.

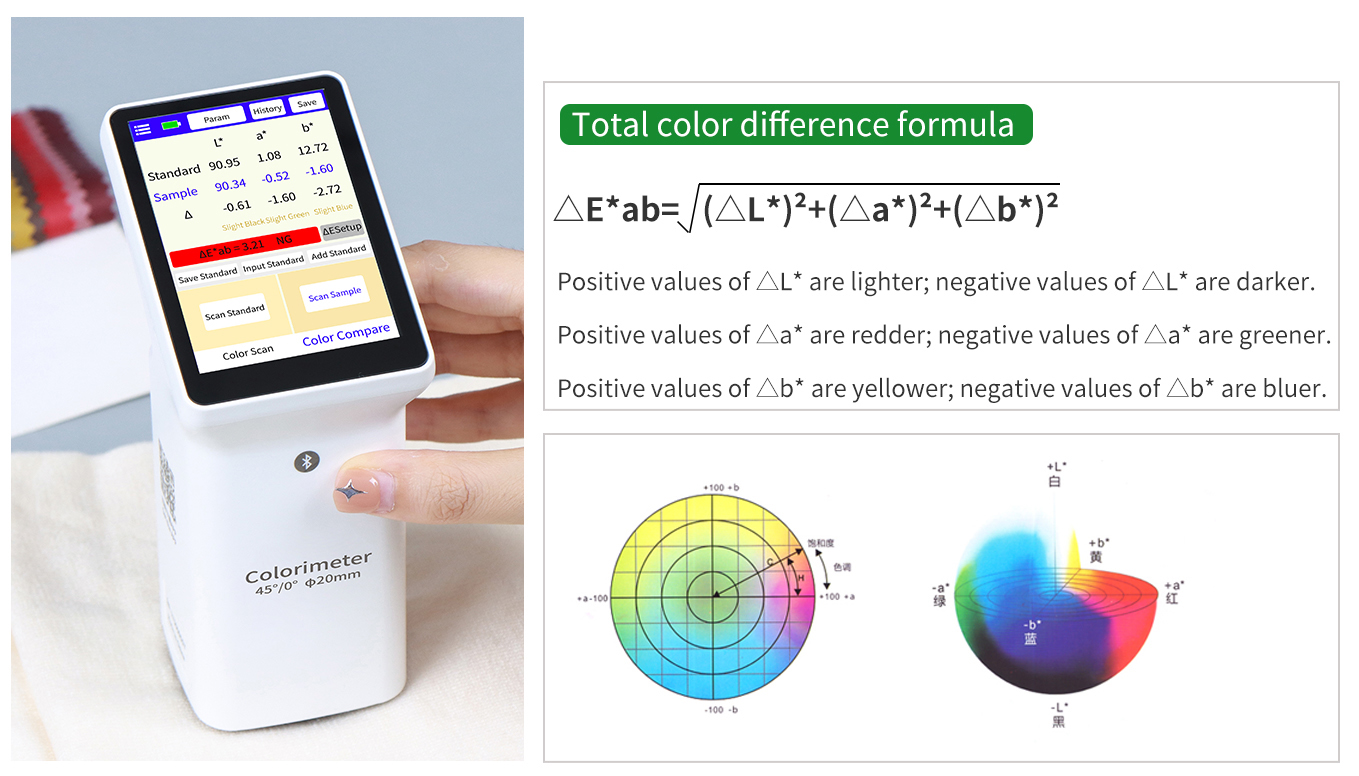

Multiple color spaces and color difference formulas

There are seven color spaces and seven color difference formulas for user to choose which meet various measuring demands of different industries.

Advanced color sensor, Outstanding quality

86175 adapts chip-level color sensor AS7261 newly launched by ams AG, whose precise XYZ tristimulus color sensing function simulates the human eye response curve of the standard observer defined in the CIE1931 and CIE1976 color systems.

Mobile App and PC software support

The device is equipped with APP on mobile phone and PC software, covering operation system of Android, iOS and Windows for more powerful functions. It can switch between Chinese and English to meet requirements of different application scenes.

Measuring locating plate to make measurement more accurate

The instrument is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.

Compensation light path technology

Compensation light path installed in the device enables long circle calibration and stable result.

Large storage space

The instrument can store 1000 colors and color comparison records respectively. Perfectly solve the consistency problem caused by the fading of the standard product after long-term storage.

Energy-saving and eco-friendly

Lithium battery offers continuous test up to 10000 times after fully recharged. Defaulted auto-power-off time could be set.

Qualifications and Standards

86175 handheld colorimeter meets the following standards:

  • GBT 3978-2008 standard lighting body and geometric conditions

  • GBT 3979-2008 Method for measuring object color

  • GBT 7921-2008 Uniform color space and color difference formula

  • GBT 11186.1-1989 Coating Film Color Measurement Method Part 1: Principle

  • GBT 11186.2-1989 Coating Film Color Measurement Method Part 2: Color Measurement

  • GBT 11186.3-1989 Method for Measuring the Color of Coating Film Part 3 Calculation of Color Difference

  • JJG 595-2002 Verification Regulations for Color Measuring Colorimeter

Packing List

No. Description Quantity Unit
1 Colorimeter 1 Set
2 USB cable 1 pcs
3 U disk (software) 1 pcs
4 Cleaning cloth 1 pcs
5 Locating plate 1 pcs
6 User manual 1 pcs
7 Calibration Report 1 pcs

Installation and Operation

APP installation

Our APP supports Android operation system 7.0 and above, IOS 7.0 and above.
Installation options:

  • Scan the QR code on the device by web-viewer or Wechat, download and install following instructions.

  • Search "LSColor" APP Store/Google Play to install.

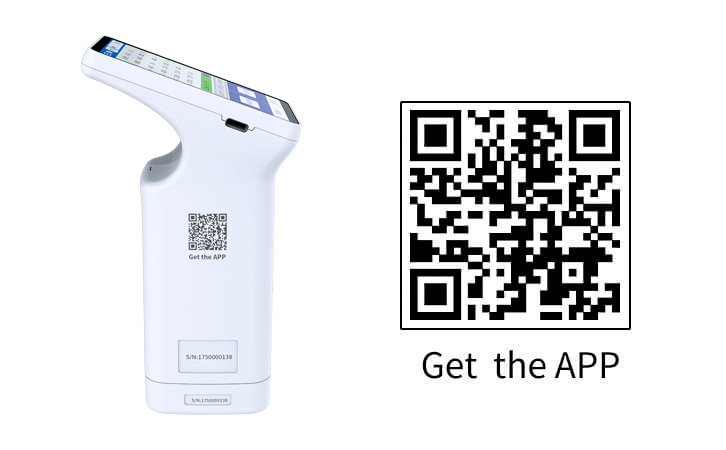

Scan the QR code on the device
Scan the QR code on the device

2. PC software installation

Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software only supports Windows operating system)
It can be installed in the following ways:

  • Download "Colorimeter" to the local and run it directly after decompression.
