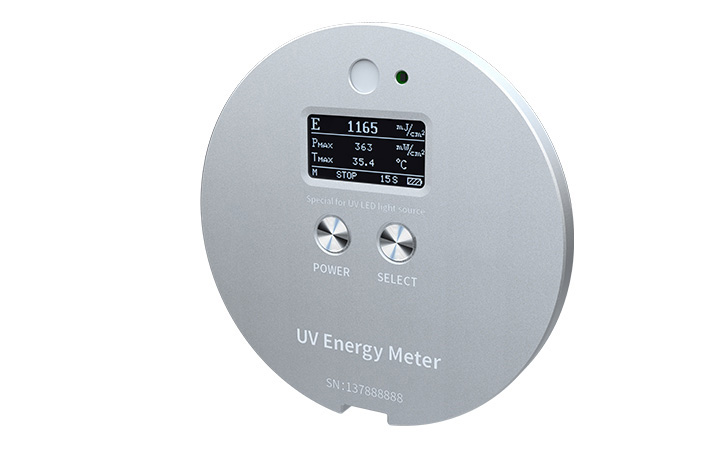

86137 UV Energy Meter
Designed for UV LED Light Sources
Spectral Response Range: 340nm–420nm, calibrated at 395nm
Ultra-slim design: 7.6mm thick, 102mm diameter
Easy to operate
Withstands high temperatures for long-term use
The 86137 UV Energy Meter simultaneously measures UV intensity, energy, and temperature. It is ideal for UV LED light sources at wavelengths of 365nm, 375nm, 385nm, 395nm, and 405nm. This device is commonly used in equipment such as UV curing machines, coating machines for mobile phones, exposure units, printing machines, and other systems that require precise UV radiation monitoring. It offers a high measurement range of up to 40,000 mW/cm² and supports narrow-space measurements with straightforward operation. A built-in high-temperature protective cover ensures stable performance in extreme environments.
Parameters
| Parameter | 86137 UV Energy Meter |
|---|---|
| Spectral Range | 340nm - 420nm, calibrated at 395nm LED light source |
| Power Measuring Range | 0-40000mW/cm² |
| Power Resolution | 1mW/cm² |
| Energy Measuring Range | 0-999999mJ/cm² |
| Measuring Accuracy(H is the standard value) | H<50mW/cm²: ±5mW/cm² H>=50mW/cm²: ±10%H,±5%H (typical) |
| Sampling Speed | 2048 times/second |
| Recording Period | 32 min |
| Power Supply | Rechargeable lithium battery 3.7V@400mAh |
| Display | 128X64 Dot matrix OLED |
| Dimension | Diameter 102mm* thinkness 7.6mm |
| Weight | 136g |
Features
Broad Spectral Response Range
The 86137 is designed with a wide spectral response range of 340nm–420nm, making it suitable for detecting multiple UV LED wavelengths, including 365nm, 385nm, 395nm, and 405nm.
Simultaneous Measurement of Energy, Intensity, and Temperature

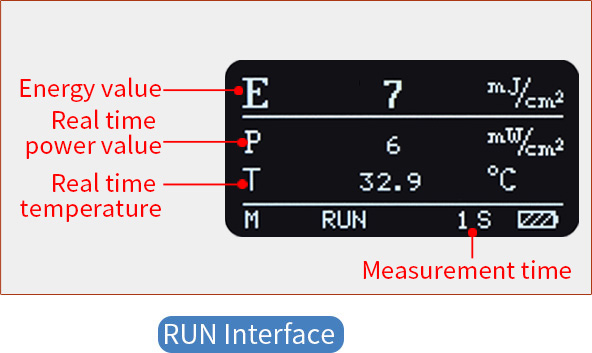

During operation, the device displays real-time UV power and temperature. After the measurement is completed, it shows accumulated energy, peak power, and maximum temperature values.
Compact and Portable Design

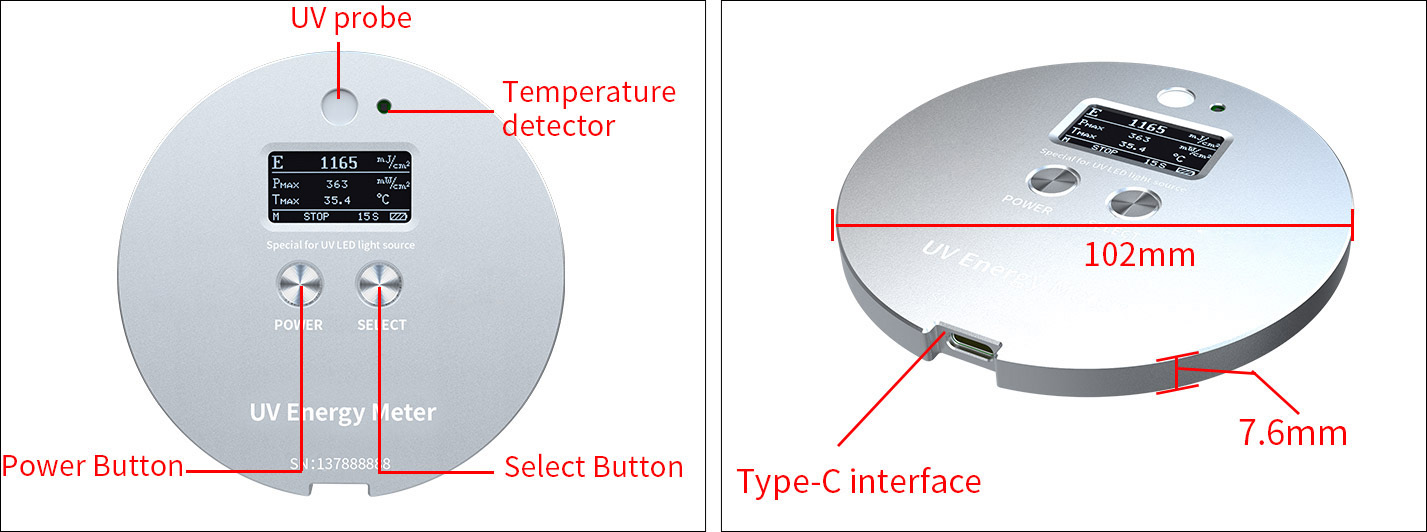

Its compact size—only 7.6mm thick and 102mm in diameter—makes the 86137 ideal for measuring in tight or confined spaces.
Dual Measurement Modes
The automatic mode starts and ends the measurement cycle automatically, precisely capturing curing time and energy values. The manual mode allows for the measurement of energy output from multiple UV sources.
High-Temperature Protective Cover
Equipped with a factory-installed heat-resistant cover, the device can operate reliably under prolonged high-temperature conditions.
High-speed sampling at 2048 times/second ensures precise data collection
High-accuracy temperature sensor provides real-time temperature monitoring
Built-in timer offers accurate measurement timing
Automatically recalls the last recorded data on startup, preventing data loss
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | 86137 UV Energy Meter | 1 | pcs |
| 2 | USB Cable | 1 | pcs |
| 3 | DC5V Power Adapter | 1 | pcs |
| 4 | User Manual | 1 | pcs |
| 5 | Certificate/Warranty Card | 1 | pcs |
| 6 | Calibration Report | 1 | pcs |
| 7 | High Temperature Protective Cover | 1 | pcs |
| 8 | Plastic Engineering Box | 1 | pcs |
