86136 UV Energy Meter
Suitable for high pressure mercury lamp
For high pressure mercury lamp, halogen lamp
7.6mm thickness and 102mm diameter, simple operation
Long-term for high temperature resistance
86136 UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and intensity in high pressure mercury lamp, halogen lamp and other light sources. It can be used to measure UV intensity, energy and temperature in a variety of UV curing machine, UV coating machine, exposure machine, dryer, printing machine and other equipment. The UV energy meter can be measured in narrow spaces with 7.6mm thick. Equipped with a high temperature protective cover, still operate in high temperature environment.
Parameters
| Parameter | 86136 UV Meter |
|---|---|
| Spectral Range | 315nm-400nm, λp = 365nm |
| Power Measuring Range | 0-2000mW/cm² |
| Power Resolution | 0.1mW/cm² |
| Energy Measuring Range | 0-999999mJ/cm² |
| Measuring Accuracy(H is the Standard Value) | H<5mW/cm²：±0.5mW/cm² H>=5mW/cm²：±10%H, ±5% (typical) |
| Sampling Speed | 2048 times/second |
| Recording Period | 32 min |
| Power Supply | Rechargeable lithium battery 3.7V@400mAh |
| Display | 128X64 Dot matrix OLED |
| Dimension | Diameter 102mm* thickness 7.6mm |
| Weight | 136g |
Features
Energy, power and temperature are measured simultaneously
Real-time power value and real-time temperature value can be dynamically displayed during measurement.The energy accumulation value, maximum power value and maximum temperature value are displayed after the measurement.
Suitable for high pressure mercury lamp and halogen lamp
The content spectral range is 315nm-400nm, and the peak wavelength is 365nm. Professional high pressure mercury lamp, halogen lamp and other light source used for the uv energy measurement.

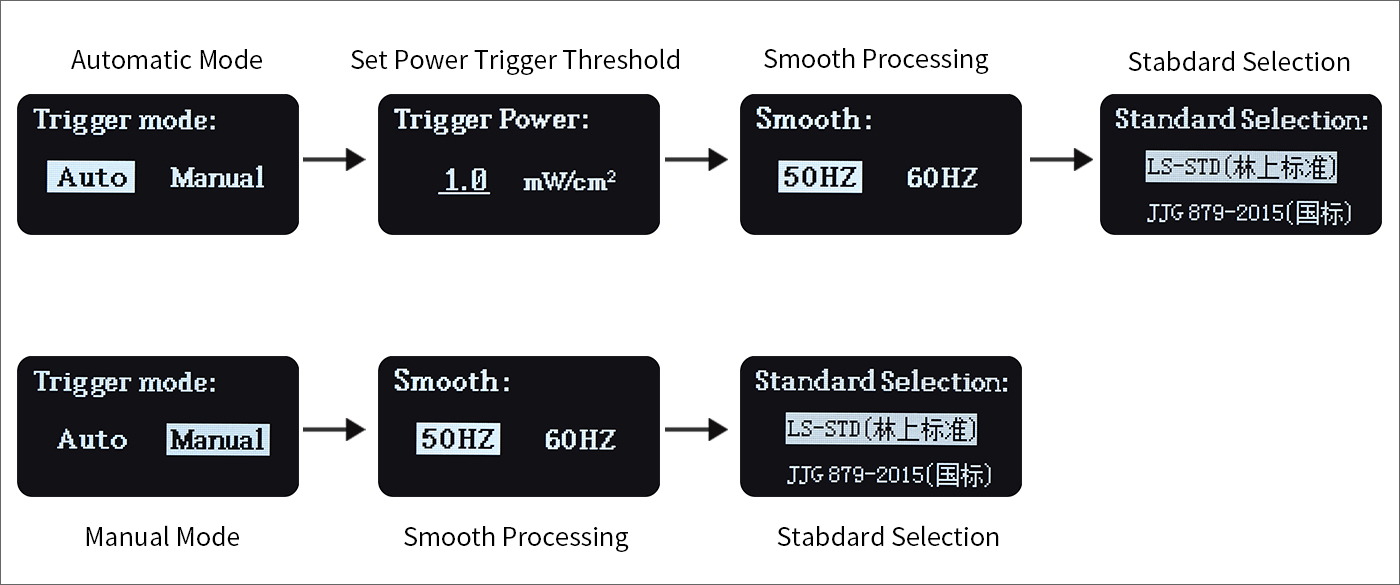

Two measurement modes available
In automatic mode, trigger and end measurement automatically, measure curing time and energy value accurately; In manual mode, energy value of multiple curing light sources can be measured.
Portable and compact
With the thickness of 7.6mm and 102mm of diameter, 86136 is suitable for narrow measuring space.
High temperature protection cover
With high temperature protection cover which is factory-equipped, long-term operate under high temperature resistance.
2048 times/second high-speed sampling,provide more accurate data
The high-precision temperature detector dynamically displays actual temperature in real time, and the timer accurately records measurement time
With high temperature protection cover which is factory-equipped, long-term operate under high temperature resistance
The last test data is automatically displayed after power-on, so there is no need to worry about data loss
Qualifications and Standards
86136 UV energy meter conforms to the following standard:
"JJG 879-2015 Verification Regulations of Ultraviolet Radiometers"
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | 86136 UV Energy Meter | 1 | pcs |
| 2 | USB Cable | 1 | pcs |
| 3 | DC5V Power Adapter | 1 | pcs |
| 4 | User Manual | 1 | pcs |
| 5 | Certificate/Warranty Card | 1 | pcs |
| 6 | High Temperature Protective Cover | 1 | pcs |
| 7 | Calibration Report | 1 | pcs |
| 8 | Plastic Engineering Box | 1 | pcs |
