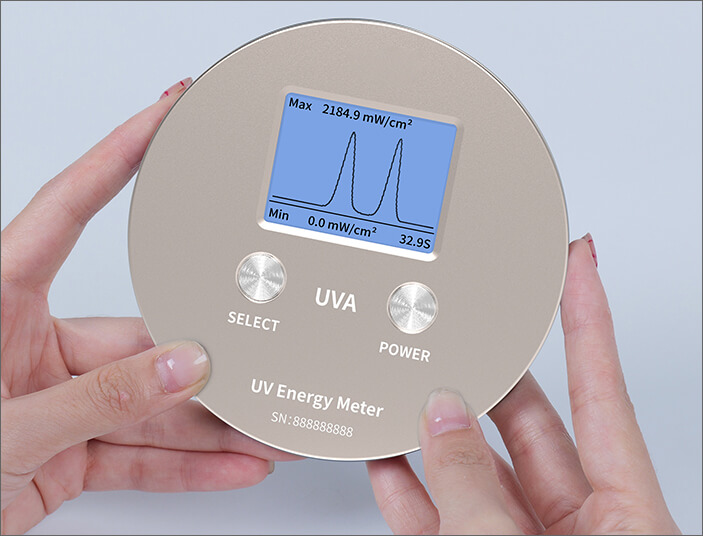

86120 UV Energy Meter
For high pressure mercury lamp and halogen lamps
Spectral response range: 315nm-400nm, λp = 365nm
Record UV intensity, energy, temperature, test duration together
Support PC software
86120 UV energy meter can not only measure energy, power, temperature and measuring time at the same time but also display the energy and power curves, export data and print test report. It has created many firsts in the UV energy meter industry:
The first UV energy meter that can display the temperature curve
The first UV energy meter can measure real-time temperature and power
The first UV energy meter with a built-in timer that accurately records the curing time
The first UV energy meter that can print a test report via a USB connection to a computer
Application
86120 UV energy meter is widely used in UV exposure, UV adhesive curing, UV ink curing, UV digital printing, optical communication, UV 3D printing and other fields. It is suitable for energy measurement of high pressure mercury lamps, halogen lamps, gallium lamps, iron lamps, xenon lamps and other light sources.
UV printing
UV curing
UV 3D printing
UV exposure
Parameter
| Parameter | 86120 UV Energy Meter |
|---|---|
| Application | Light intensity, energy and temperaturemeasurement of high pressure mercury lamp |
| Spectral Range | 315nm - 400nm, λp = 365nm |
| Power Measuring Range | 0 - 2000 mW/cm² |
| Power Resolution | 0.1 mW/cm² |
| Energy Measuring Range | 0 - 999999mJ/cm² |
| Energy Measuring Accuracy | ± 10% , ± 5% (typical) |
| Temperature Measuring Range | -55°C - +125°C |
| Sampling Speed | 2048 times/second |
| Power Data Storage Interval | 32 times/second |
| Temperature Data Storage Interval | 2 times/second |
| Recording Period | 32 min |
| Power Supply | 2 AAA alkaline dry batteries |
| Display | Dot matrix LCD |
| Test Hole Diameter | ￠10mm |
| Dimension | Diameter 120mm * thickness 13mm |
| Weight | 327g |
Feature
Two measurement modes available
There are two measurement modes. One is Manual mode which needs to start up or end of measurement manually. Another is automatic modes that can automatic switch-on or end of measurement when the energy intensity emitted by the light source is above or below the trigger threshold that can be set
Four interfaces help you record the data of UV light source
There are four interfaces to help you know better about UV light source you tested: In maximum values interface, you can acquire cumulative energy value, maxiumum power value and maximum temperature value. Measurement time can be recorded in RT interface. In temperature and power curve interface, you can know the temperature change and energy intensity variation of the light source. Four interfaces can be switched freely
Powerful PC software
The 86120 UV Energy Meter can be connected to PC software, which allows you to generate reports and print out test results, as well as to export test data
Temperature measurement possible
High-accuracy and fast-response temperature detector, truly dynamic measurement of the actual temperature in the curing machine
High temperature resistant
Built-in heat shield, high temperature resistant design. The UV energy meter can run in the environment of 100 degrees Celsius for a long time. For details on the high-temperature resistance experiments of the Linshang UV energy meter, you can click the article below to check: Use Time of Linshang UV Energy Meter at Different High Temperature
±10% high accuracy makes powerful meter
Accurately record the curing time
2048 times/sec high-speed data acquisition
The stored data will not lost when the power is turned off
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | 86120 UV Energy Meter | 1 | pcs |
| 2 | USB able | 1 | pcs |
| 3 | AAA battery | 2 | pcs |
| 4 | Antistatic gloves | 1 | pcs |
| 5 | Cross head screw-driver | 1 | pcs |
| 6 | User manual | 1 | pcs |
| 7 | Certificate/Warranty card | 1 | pcs |
| 8 | Plastic box dimension 25*21*7cm (L*W*H) | 1 | pcs |
FAQ
-
1. The difference between 86120 and 86128 UV energy meters
86120 UV energy meter is mainly used to detect 365nm UV high pressure mercury lamp, while 86128 UV energy meter is mainly used to detect 365nm, 385nm, 395nm and 405nm UV LED light sources.
-
2. Whether a traceable calibration certificate is included?
86120 and 86136 are professional UV energy meters used to detect 365nm high-pressure mercury lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$200 ; 86128 and 86137 are UV energy meters that are professionally used to detect UV LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for these two UV LED energy meters, but no calibration certificates can be provided.
-
3. How to calibrate UV energy meter, how often do I need to calibrate and how much does it cost?
To calibrate the UV energy meter, please send the instrument back to the manufacturer. Generally, it is recommended to calibrate it once a year. If the storage environment is good and the frequency of use is not high, the calibration period can also be extended according to user needs. The first calibration is free, and the cost of each subsequent calibration is US$32.
