86108D Lens Transmission Meter
0.5mm small test aperture, Free PC software
850/940nm IR transmission and 550nm VLT
Three data can be obtained by one test
Real-time dynamic self-calibration function
86108D lens transmission meter is professionally used for mobile phone lens transmittance test and IR hole infrared transmittance test. The test aperture is 0.5mm, which can test 550nm visible light transmittance and 850nm, 940nm infrared ray transmittance. The lens transmission meter has a real-time dynamic self-calibration function. It will automatically calibrated to 100% transmittance after powering on. This lens transmission meter has a test aperture of only 0.5mm and has wide application. The test principle of the lens transmission meter is that the light source illuminates the transparent material, the sensor detects the incident light intensity of the three light sources and the light intensity after passing through the measured transparent material. The ratio of the transmitted light intensity to the incident light intensity is the transmittance, expressed as a percentage.
86108D tests IR ink hole
86108D tests IR ink hole
86108D tests IR cut filter
86108D tests IR cut filter
Parameters
| Parameter | 86108D Lens Transmission Meter |
|---|---|
| Measuring Aperture | ￠0.5mm (standard) |
| Infrared | peak wavelength 850nm/940nm |
| Visible Light | peak wavelength 550nm |
| Resolution | 0.1% |
| Measurement Accuracy | ±2% (colorless uniform transparent material, 0-90% transmittance) |
| Weight | 1570g |
| Dimension | 170mm × 180mm × 144mm (L*W*H) |
| Display | 480px * 272px color LCD |
| Power Supply | DC 5V/1A |
Features
Small test aperture, widely applicable
The test aperture of this lens transmission meter is 0.5mm. Materials whose size are larger than 0.5mm can be measured
Three-in-one light source path
The three light sources share a test hole. Three data can be obtained by measuring for just one time and the test hole has an LED light for alignment, which is used to align the hole with the mobile phone lens during the test.
Real-time dynamic self-calibration
The transmission meter has real-time dynamic self-calibration function which can automatically calibrated to 100% transmittance after starting.
before testing
under testing
Large LCD screen, Three display interfaces are available
The meter features large LCD display screen, and three display interfaces are available for selection. Both 850nm and 940nm infrared ray transmittance can be selected to display or only one of them
Offer free computer software

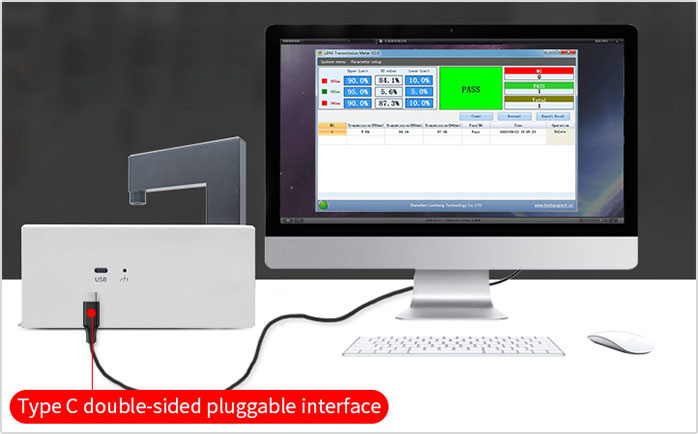

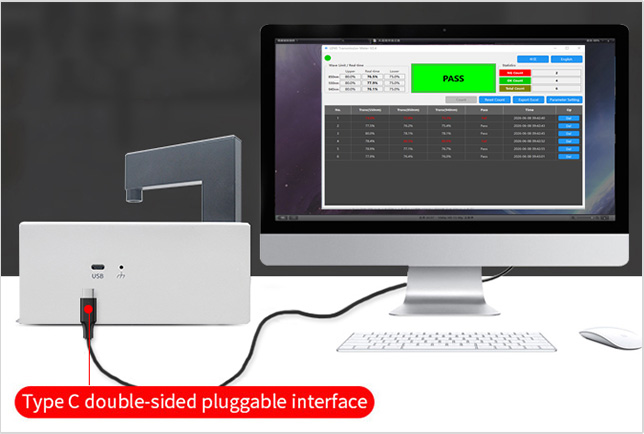

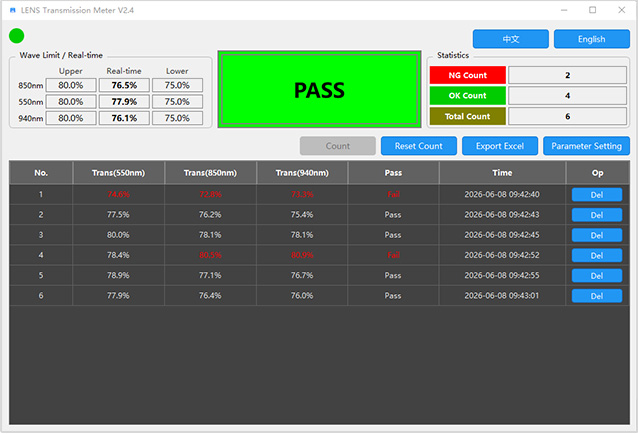

Free computer software can be run via Type-C interface to complete QC insptection in the production testing process. Please refer to the software and user manual in the attached U disk for details
Packing
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | 86108D lens transmission meter | 1 | pcs |
| 2 | DC5V Adapter | 1 | pcs |
| 3 | User Manual | 1 | pcs |
| 4 | Certificate / warranty card | 1 | pcs |
| 5 | USB extension cable | 1 | pcs |
| 6 | Packing box dimension 231*241*161cm（L*W*H） | 1 | pcs |
FAQ
-
1. The difference between 86108A and 86108D
The only difference is the measuring aperture (detector hole diameter). The measuring aperture of 86108A is 1mm, while the measuring aperture of 86108D is 0.5mm. Since the measuring aperture of 86108D lens transmission meter is smaller, so it is more suitable for measuring small-sized materials.
